Setting the Judgment Conditions (Judgement Setup)
2.

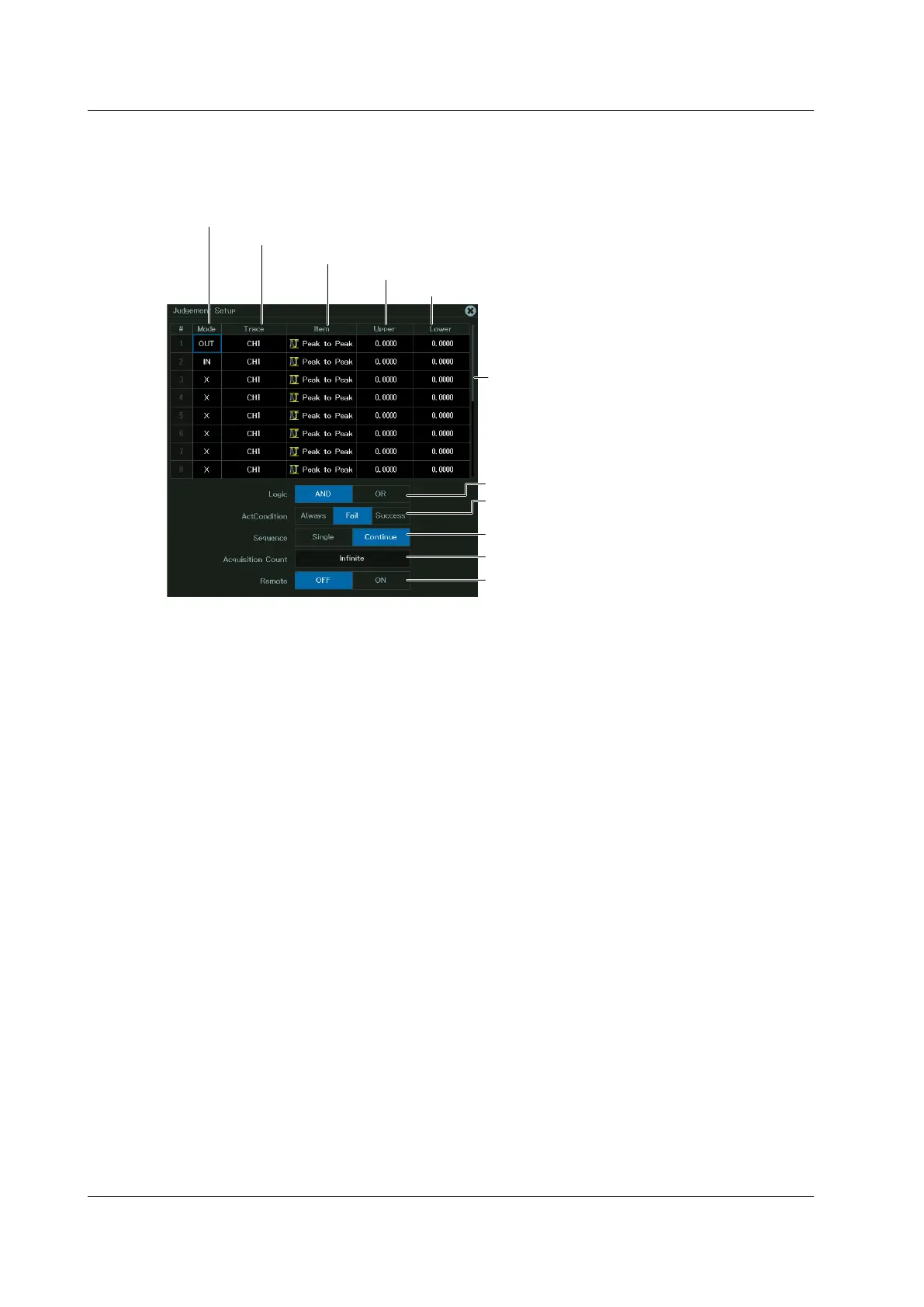

Tap Judgement Setup, or press the soft key. The following screen appears.
Set the judgment criterion (X, IN, OUT).
Select the source waveform (CH1 to CH16, Math1 to Math8, FFT1 to FFT8).
Set the lower parameter limit.
Set the determination logic (AND, OR).
Set the action condition
(Always, Fail, Success).
Set the sequence (Single, Continue).
Set the number of waveforms to acquire.
Turns external start on or off
Select the source parameter.
Set the upper parameter limit.
Scroll bar
Scroll to display reference conditions that
do not fit in the screen.
Setting Waveform Parameters (Item)
You can use all 27 automatically measured waveform parameters as reference conditions.
You can perform GO/NO-GO determination on up to 16 parameters at the same time. ► sec.
11.1
14.2 Performing GO/NO-GO Determination with Waveform Parameters
