YOKOGAWA ScopeCorder DL950 User Manual

16-7
IM DL950-02EN

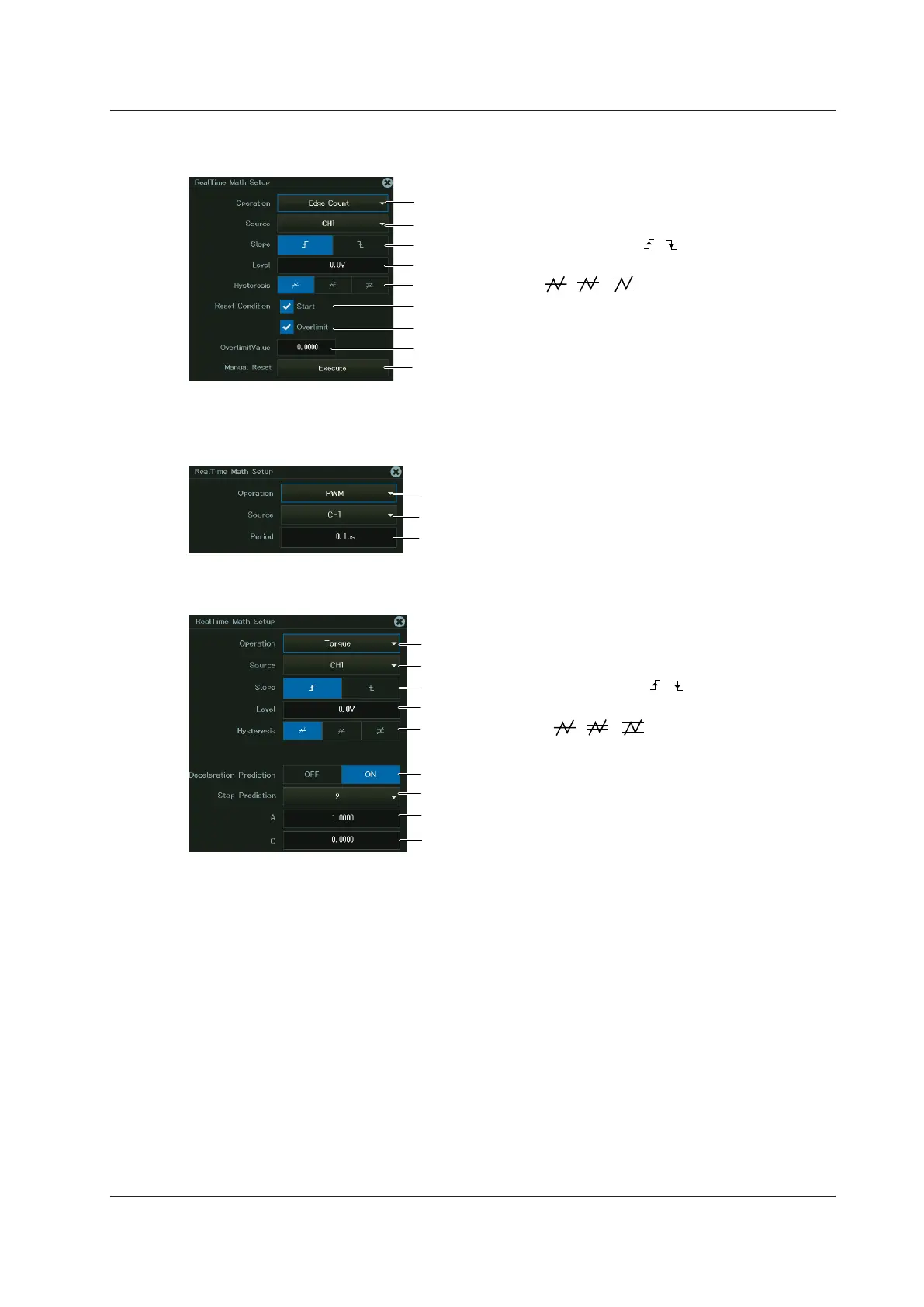

Edge Count (Edge Count)
The following screen appears when you select the edge count function.
Select Edge Count.
Select the math source waveform.
Set the edge detection condition ( , ).
Set the level used to detect edges.
Set the hysteresis ( , , ).
Resets the counter when waveform acquisition starts
Manually resets the counter
Resets the counter when the specified limit
value is exceeded
Resets the limit value that resets the counter
Demodulation of the Pulse Width Modulated Signal (PWM)
When you select the function that is used to demodulate pulse width modulated signals, the
following screen appears.
Select PWM.
Select the math source waveform.
Set the period.
Torque (Torque)
The following screen appears when you select the torque function.
Select Torque.
Select the math source waveform.
Set the edge detection condition ( , ).
Set the level.
Set the hysteresis ( , , ).
Set the deceleration prediction (OFF, ON).
Set the stop prediction (OFF, 2, 4, 8, 16).
Set coefficients.
Set coefficients.
16.1 Configuring Real Time Math
