16-11
IM DL950-02EN

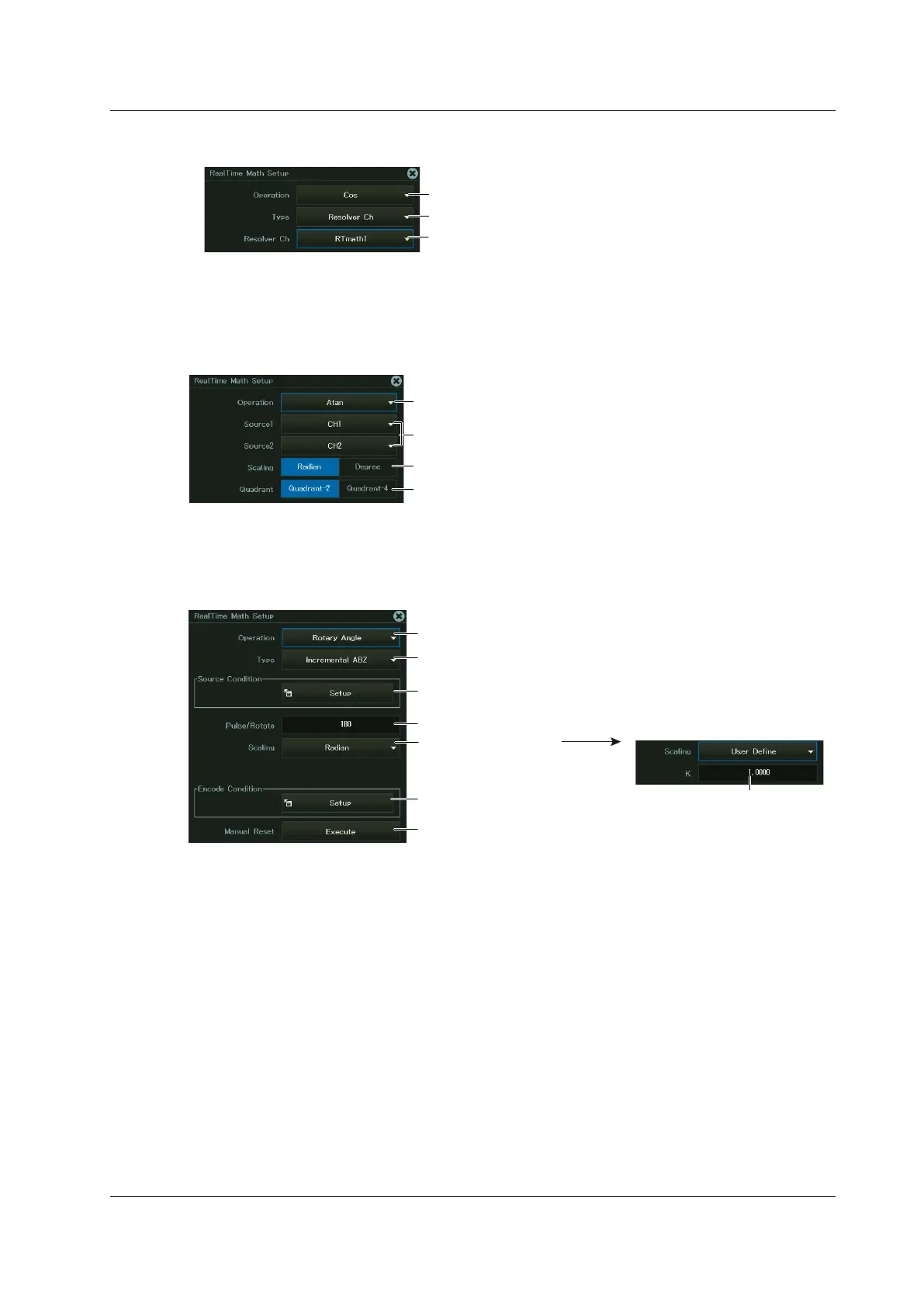

When the Encode Type Is Set to Resolver Ch (available when a channel with a number
smaller than the channel you are editing is set to Resolver or 3Phase Resolver)
Set the encode type to Resolver Ch.
Select Cos or Sin.
Set the source channel.*
* Select a channel in which the operator is set to Resolver or 3 Phase
Resolver in a real time math function with a number smaller than the number
of the channel you are editing.
Arc Tangent (Atan)
The following screen appears when you select the arc tangent function.
Set the quadrant range (Quadrant-2, Quadrant-4).
Select Atan.
Set the math source waveform.
Set the scale (Radian, Degree).
Rotation Angle (Rotary Angle)
The following screen appears when you select the rotary angle function.
When the Encode Type Is Set to Incremental ABZ, Incremental AZ, Incremental AB, or
Incremental A
Set the encode type II Incremental ABZ, Incremental AZ,
Incremental AB, or Incremental A.
Select Rotary Angle.
See “Setting the Source Conditions.”
Set the number of pulses per
rotation.
See “Setting the Encoding
Conditions.”
Resets the math result manually
Set the scaling.
(Radian, Degree, User Define)
When User Define is selected
Set the scaling factor.
16.1 Configuring Real Time Math
To Next Page
