2-8
IM DL950-02EN

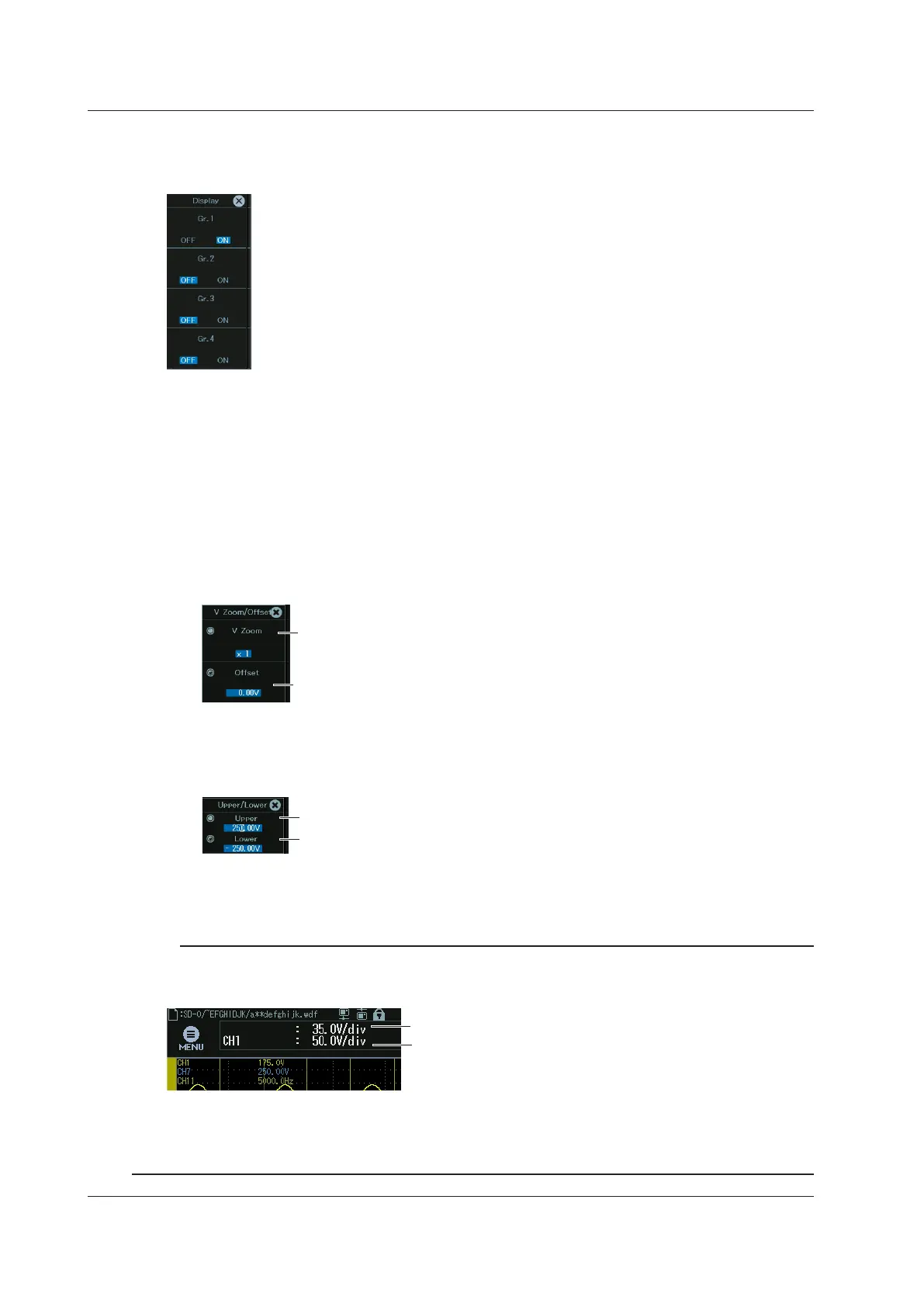

Configuring the Display (Display)
3.
After step 2 on page 2-3, tap Display, or press the soft key. A display setup menu appears.
Set the display group in which the channel you are setting is to be registered.
You can register a channel in multiple display groups.
For details on configuring display groups, see chapter 5, “Display.”
Setting the Display Range and Scope Mode (V Scale, V Zoom/
Offset, Upper/ Lower)
Using DIV
3.
After step 2 on page 2-3, set V SCALE to DIV.
4.
Tap V Zoom/Offset, or press the soft key.
Set the offset.
Set the magnification.
Using Span
3.
After step 2 on page 2-3, set V SCALE to SPAN.
4.
Tap Upper/Lower, or press the soft key.
Set the upper limit.
Set the lower limit.
For the upper and lower limits, if you tap the jog dial mark several times or press SET to
select both Upper and Lower marks to be changed with the jog dial, you can change the
upper in the lower limits while keeping the interval between them constant.
Note
• The display range V/div is displayed above the measurement range V/div. This is not displayed when
the V Scale is set to DIV and the magnification is x1 because the display range is the same as the
measurement range.
V/div of measurement range
V/div of display range
• When V Scale is set to DIV, the display range is set in integer multiples of V/div. Therefore, the display
range changes according to the changes in V/div.
• When V Scale is set to SPAN, the display range is fixed. Therefore, the display range does not change
even if V/div is changed.
2.1 Configuring Voltage Measurements (on modules other than 16-CH temperature/voltage input modules)
To Next Page
