20-3
IM DL950-02EN

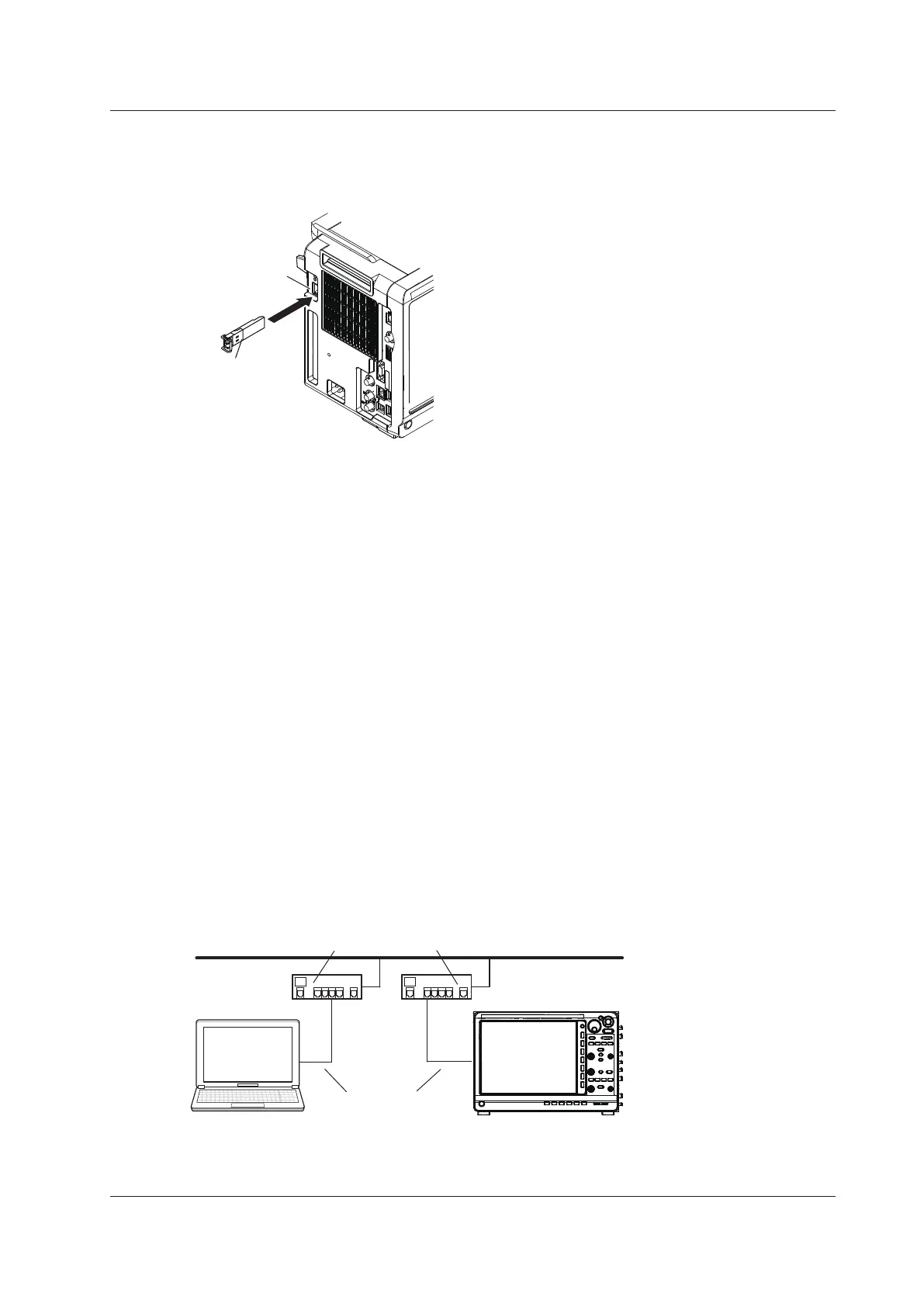

Connecting to the SFP+ Port (10GBASE-R)(/C60 option)
Mount a 10GSFP+ module to the SFP+ port on the side panel of this instrument.
For details on mounting, see the 10GSFP+ module’s user’s manual.
SFP+ port
(10GBASE-R)
(/C60 option)
10GSFP+ module
Connect an SFP+ cable to the 10GSFP+ module.
Items Required to Connect the Instrument to a Network
10GSFP+ module
Prepare an SFP+ module that is compatible with 10 Gbit Ethernet.
Connector type: SFP+
Electrical and mechanical specifications: Complies with IEEE802.3
For detailed specifications, see the DL950 ScopeCorder Getting Started Guide (IM DL950-
03EN).
This module is not required if you are using a module-integrated cable.
SFP+ cable
Prepare a 10GBASE-R cable.
To Connect to a PC over a Network
1.
Turn off the instrument.
2.
Connect the connector on one end of a UTP (or STP) cable to the ETHERNET 1000BASE-T
port on the side panel or the connector on one end of an STP+ cable to the 10GBASE-R port
on the side panel.
3.
Connect the other end of the UTP (or STP) or SFP+ cable to a hub or router.
4.
Turn on the instrument.
Hub or router that supports 1000BASE-T or 10GBASE-R
UTP or STP cable
(straight cable)
SFP+ cable when using 10G Ethernet (/C60 option)
(Straight cable)
PC
DL950
20.1 Connecting the Instrument to a Network
To Next Page
