23-10
IM DL950-02EN

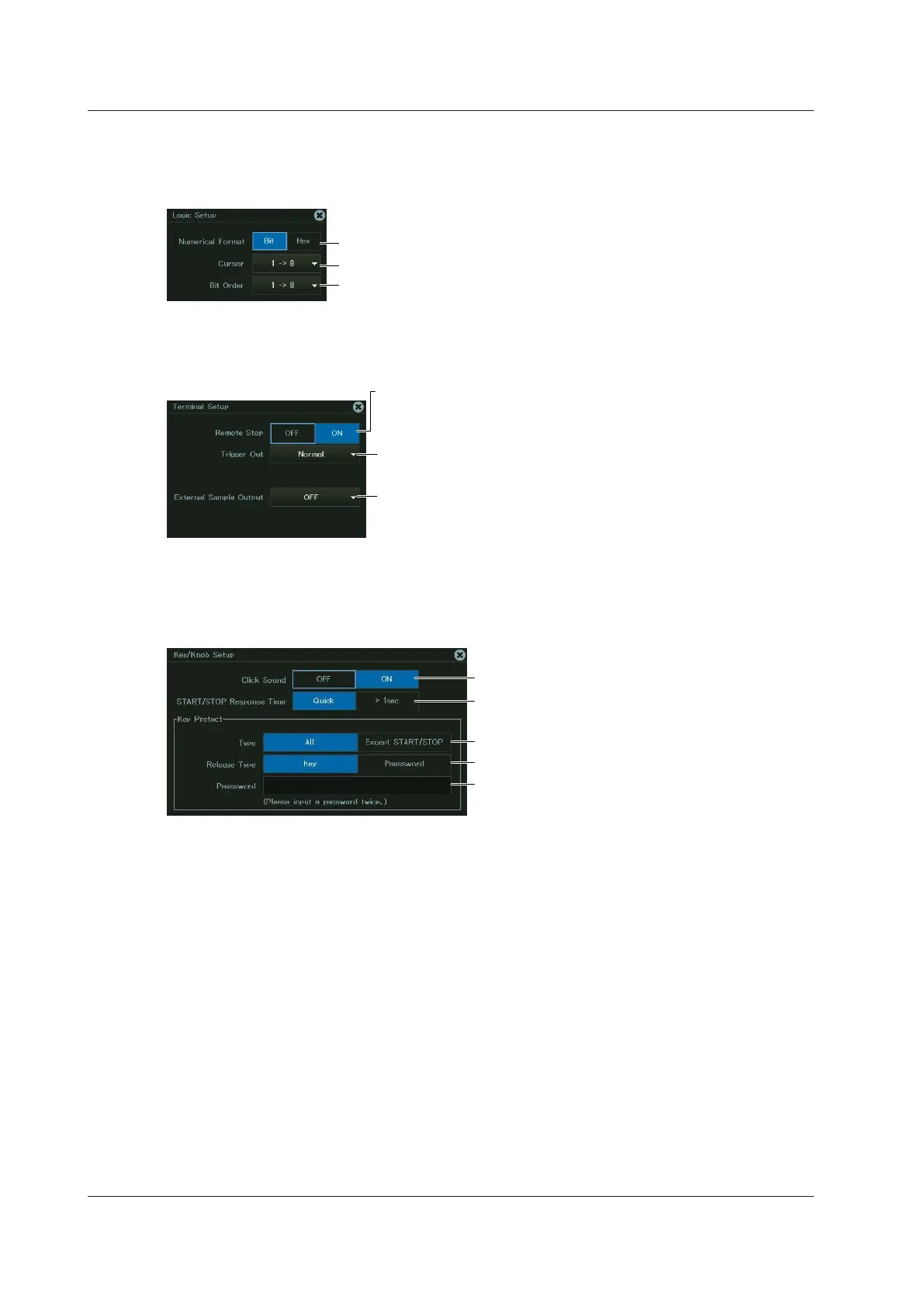

Configuring the Logic Settings (Logic Setup)
3.
Tap Logic Setup, or press the soft key. The following screen appears.
Set the numerical format (Bit, Hex).
Set the direction to read cursor data (1→8, 8→1).
Set the direction to read bit data (1→8, 8→1).
Configuring the External I/O Terminal Settings (Terminal Setup)
3.
Tap Terminal Setup, or press the soft key. The following screen appears.
Set the remote stop feature.
ON: Enables the STOP signal
OFF: Disables the STOP signal
Set the trigger output (Normal, Pulse).
Set the external sample pulse signal output
(OFF, Acquisition, Free Run)
Turning the Click Sound On and Off and Configuring the Key Lock
Settings (Key/Knob Setup)
3.
Tap Key/Knob Setup, or press the soft key. The following screen appears.
Set the click sound (ON, OFF).
Set the start/stop response time
(Quick, > 1sec).
Set the key lock type (All, Except START/STOP).
Set the key lock release method (Key, Password).
Set the password (up to 8 characters).
Start/Stop Response Time
Quick: Waveform acquisition starts or stops as soon as the START/STOP key is pressed.
1 s:
Waveform acquisition starts or stops 1 second after the START/STOP key is
pressed.
Key Lock Type
All: Key lock is applied to all keys except KEY PROTECT.
Except START/STOP: Key lock is applied to all keys except KEY PROTECT and START/
STOP.
23.6 Configuring the Environment Settings
