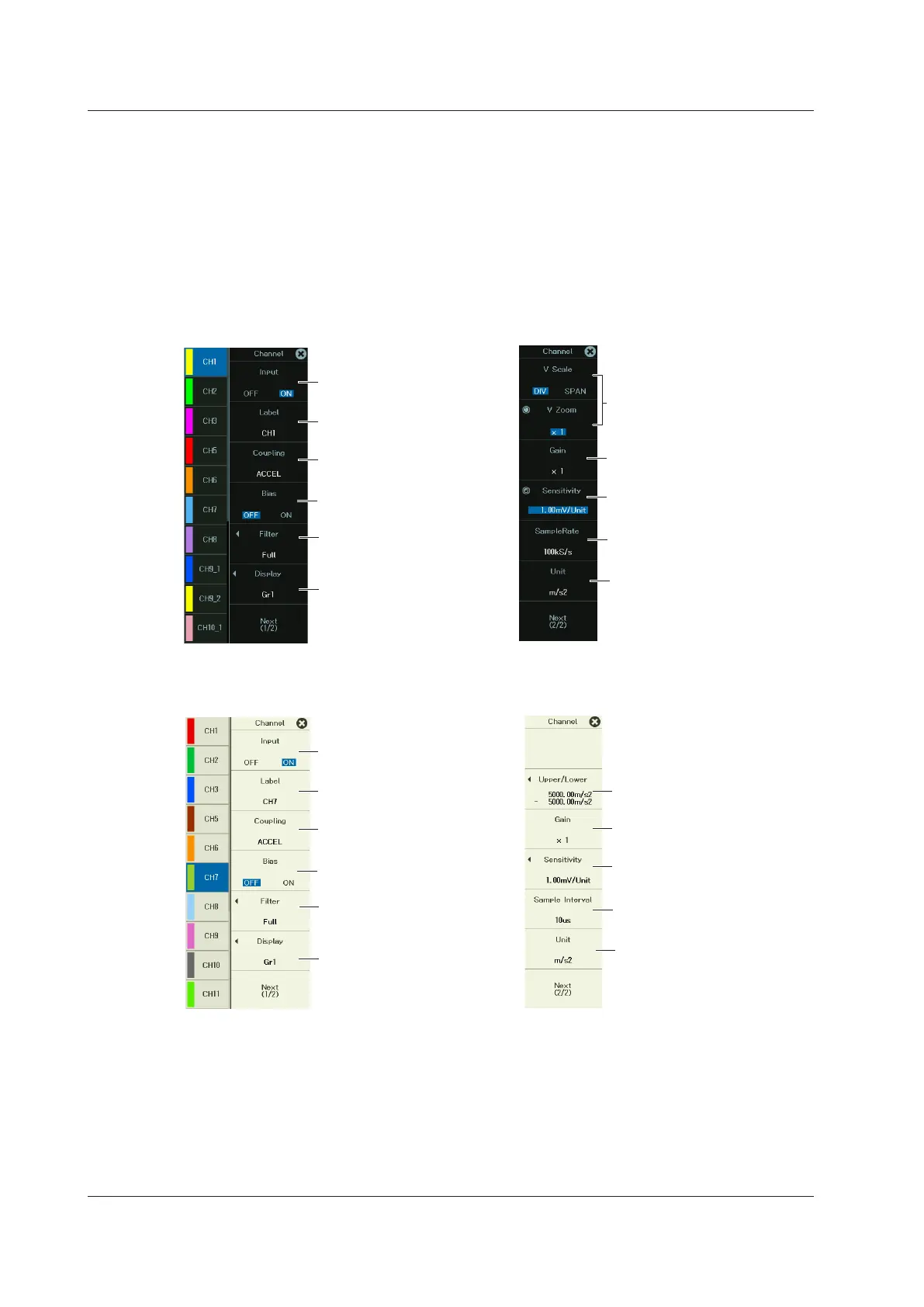

Channel Setup Menu
1.
On the waveform screen’s MENU, tap VERTICAL > CH, or press CH. A channel setup menu
appears.
(You can also tap the channel information display area at the top of the screen to display the
channel setup menu.)
2.
Tap a channel you want to configure, or select it using the jog dial or up and down arrow keys.
Scope Mode
Turns the waveform
input on or off
Channel setup menu (1/2)
Channel setup menu (2/2)
Set the acceleration
sensor’s sensitivity.
Set the gain.
Set input coupling to
ACCEL.
Turns the bias current
supply on or off
Set the display label.
Set the acceleration unit.
Set the display range.
► sec. 2.1
Set the bandwidth limit and
digital filter. ► sec 2.1.
Display settings
► sec. 2.1
Set the sample rate.
► sec. 2.1
Recorder Mode
Turns the waveform
input on or off
Channel setup menu (1/2)
Channel setup menu (2/2)
Set the acceleration sensor's
sensitivity.
Set the gain.
Set input coupling
to ACCEL.
Turns the bias current
supply on or off
Set the display label.
Set the acceleration unit.
Set the display range.
► sec. 2.1
Set the bandwidth limit and
digital filter. ► sec 2.1.
Display settings
► sec. 2.1
Set the sample interval.
► sec. 2.1
2.6 Configuring Acceleration Measurements
