P1086708-001 ZXP Series 9 Card Printer Service Manual 123
Maintenance
Cleaning the Laminator
Step 8. For the double-sided laminator only:

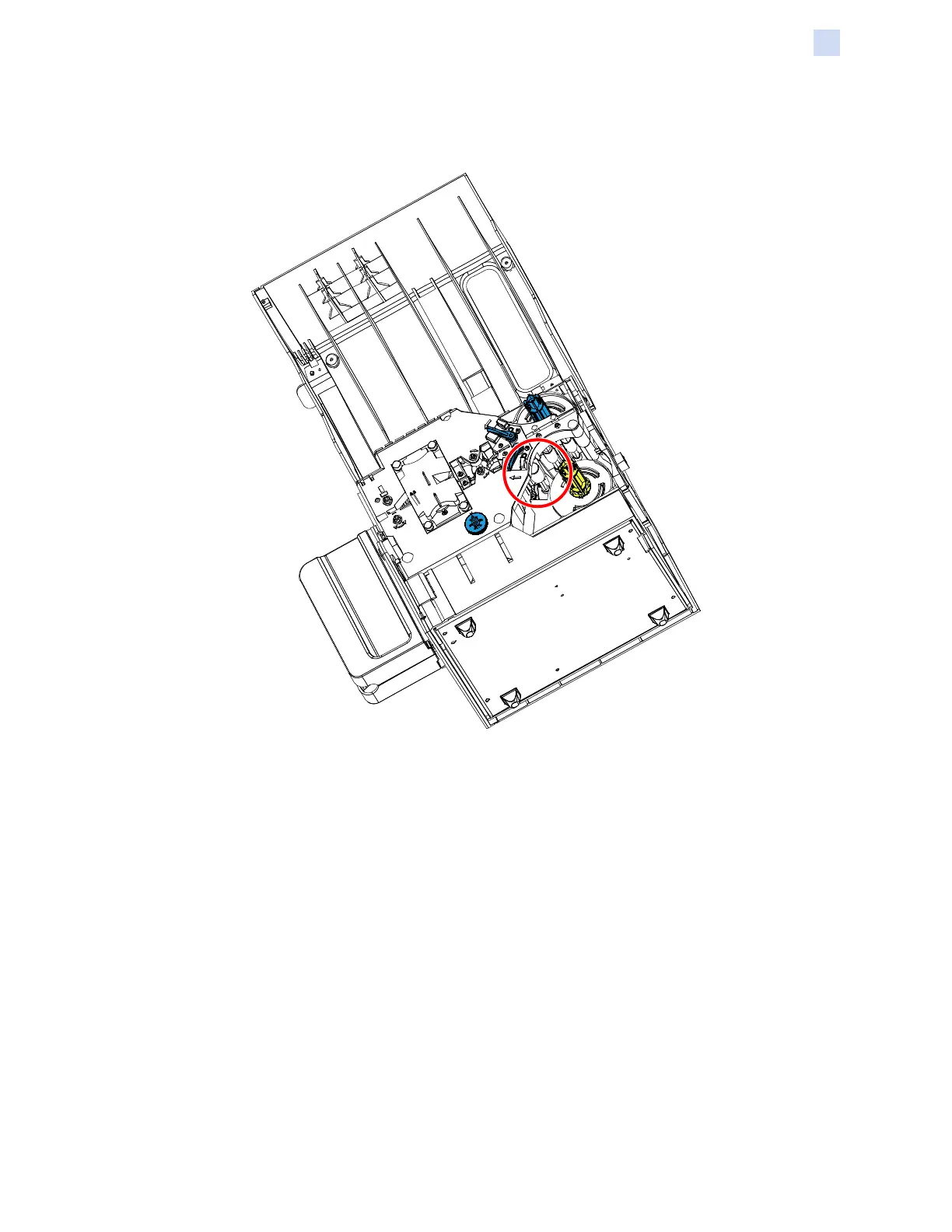

a. Locate the roller (circled below) for the lower cassette.
b. Use a second cleaning swab in the laminator cleaning kit. Bend the swab to
release the cleaning uid.
c. Press Bottom.
d. Clean the bottom media roller by moving swab tip side-to-side as it turns ve full
revolutions. Only use moderate force.
e. When the operation is complete, press Exit.
Step 9. Reinstall the laminate cassette(s).
Step 10. Close the laminator door.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
