Zebra ZXP 9 Series User Manual

P1086708-001 ZXP Series 9 Card Printer Service Manual 9
Setup
Unpacking (continued)

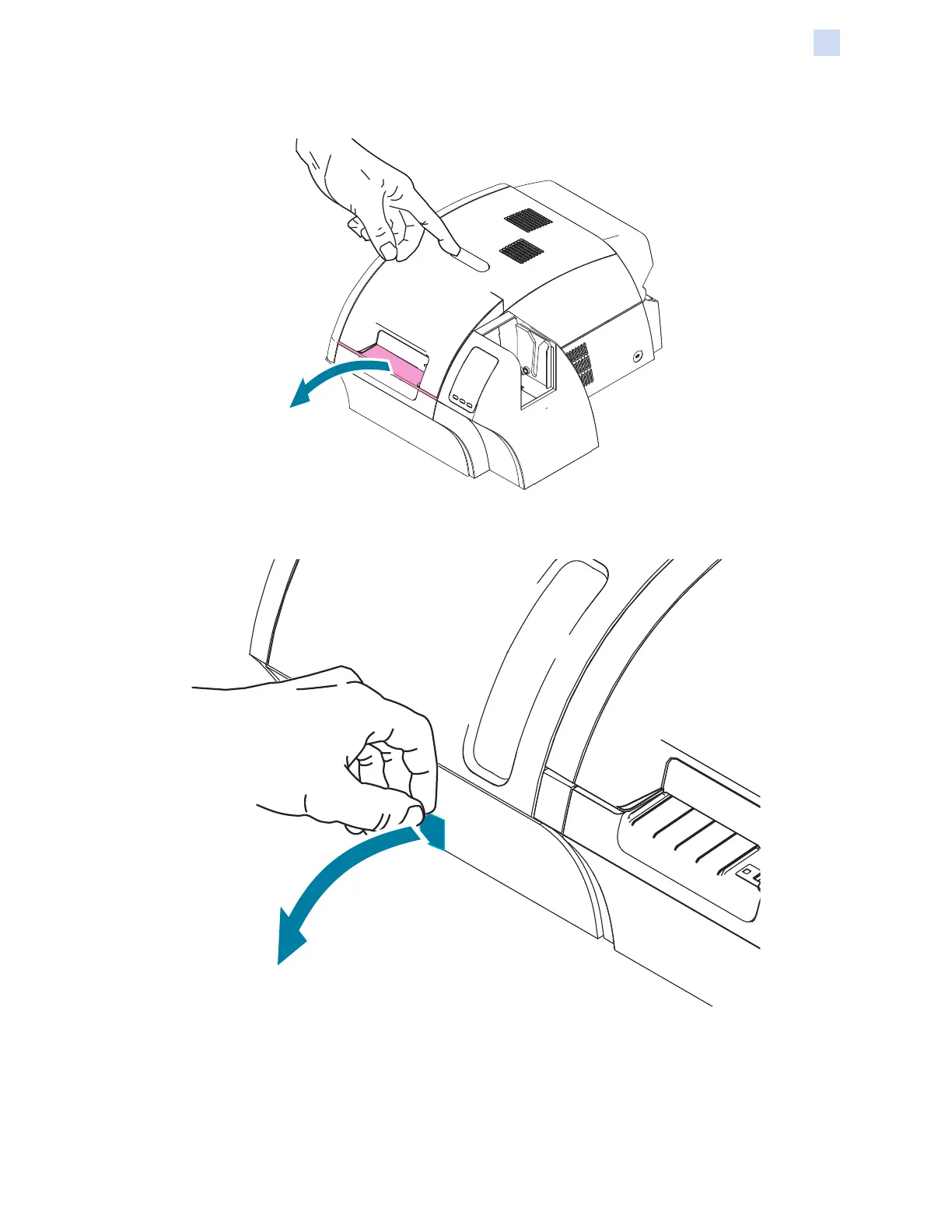

Then, open the printer by pressing the yellow release button and remove the packing material.
If the printer came with the optional laminator installed, remove the packing tape from the laminator
as shown in the gure below.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
