Zebra ZXP 9 Series User Manual

10 ZXP Series 9 Card Printer Service Manual P1086708-001
Setup
Unpacking (continued)

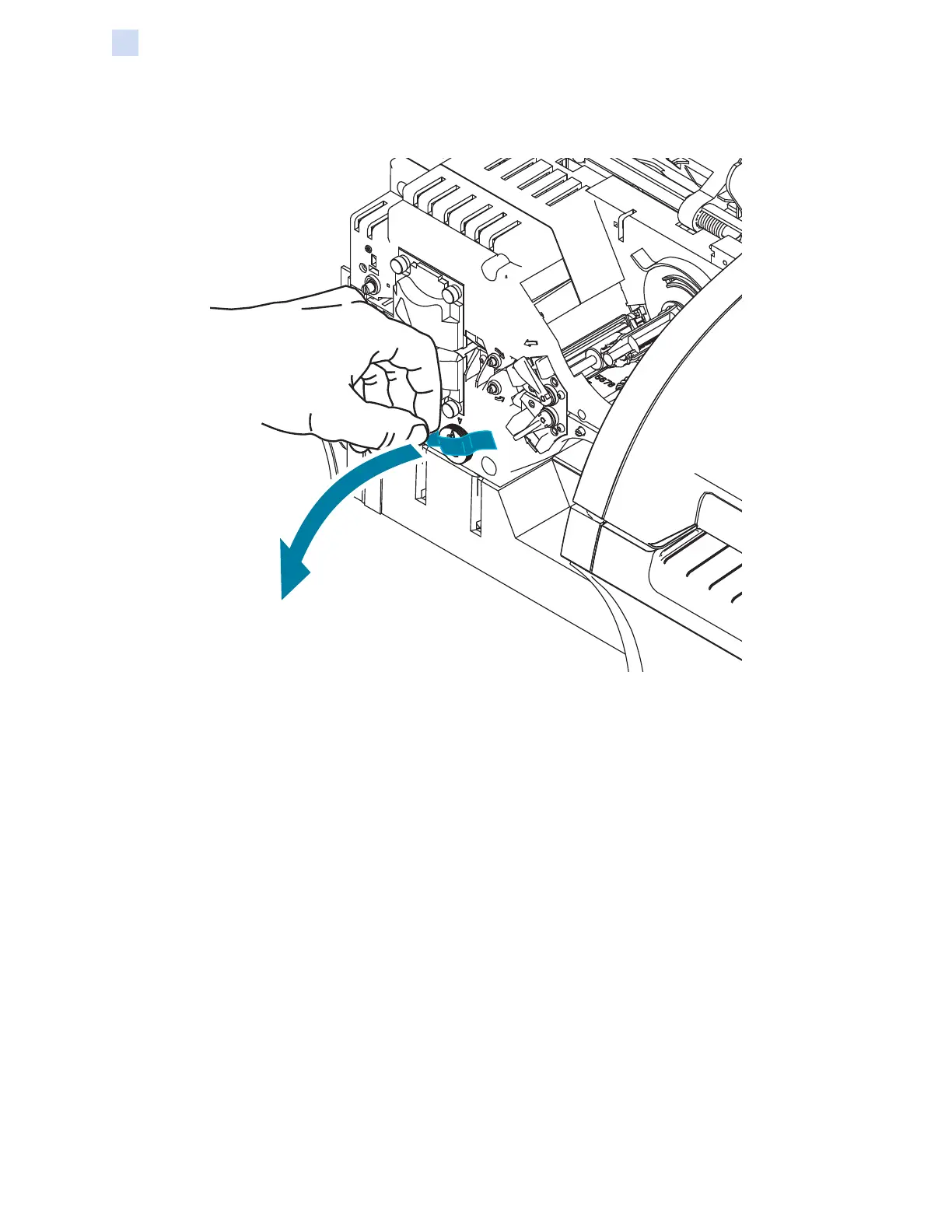

Then, open the laminator cover by pulling forward on the tab on the left side of the laminator cover
and remove the packing tape as shown in the gure below.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
