252 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Transfer Station Assembly

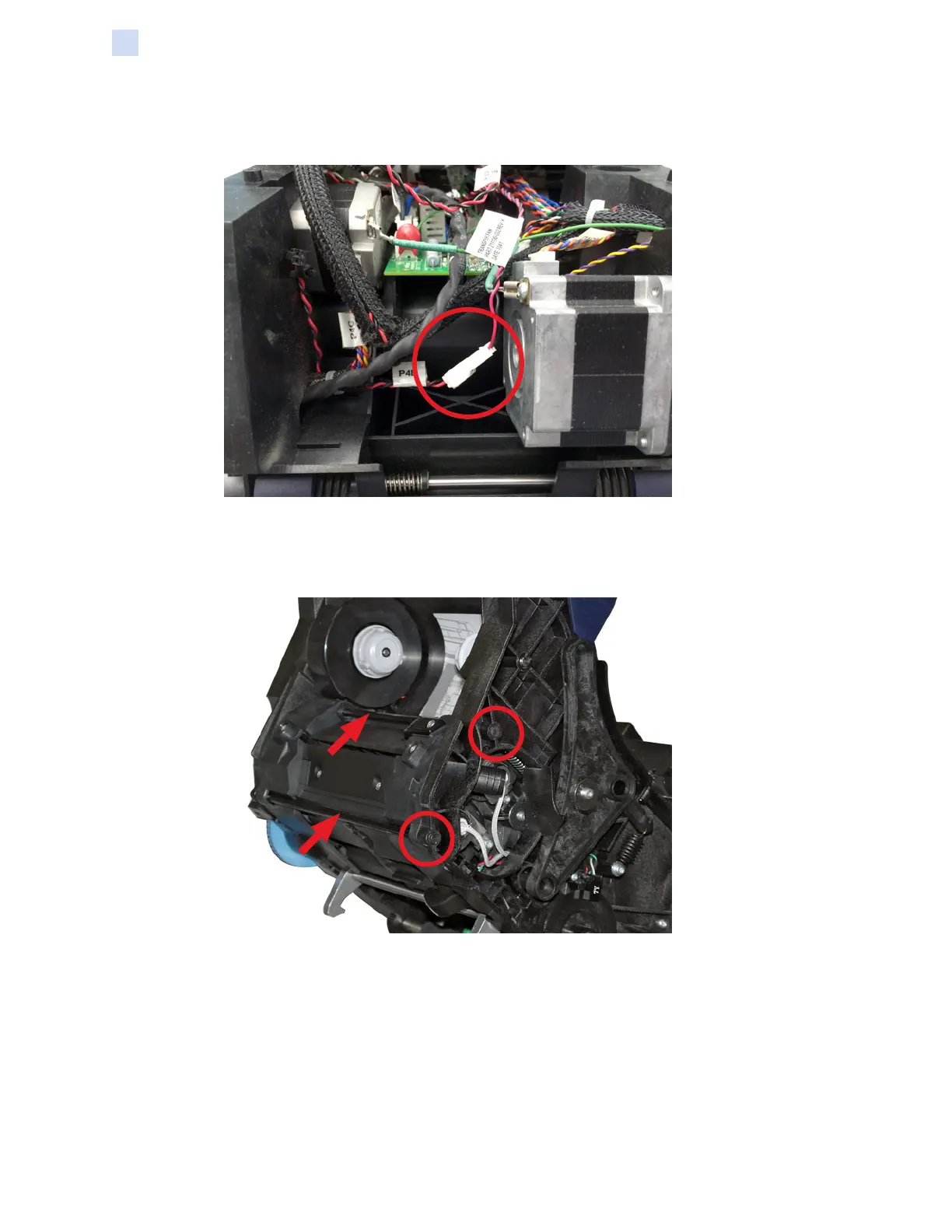

Step 4. Unplug the transfer fan connector (circled below). Note: To avoid confusion when
reinstalling, mark the plug and associated connector.
Step 5. Remove the two retaining shafts (arrows below):
a. While holding the push pins (circled below) in place, slide the retaining shafts to
the left. Remove the push pins and retaining shafts.
