P1086708-001 ZXP Series 9 Card Printer Service Manual 253
Replacement Procedures for the Printer
Procedures: Transfer Station Assembly

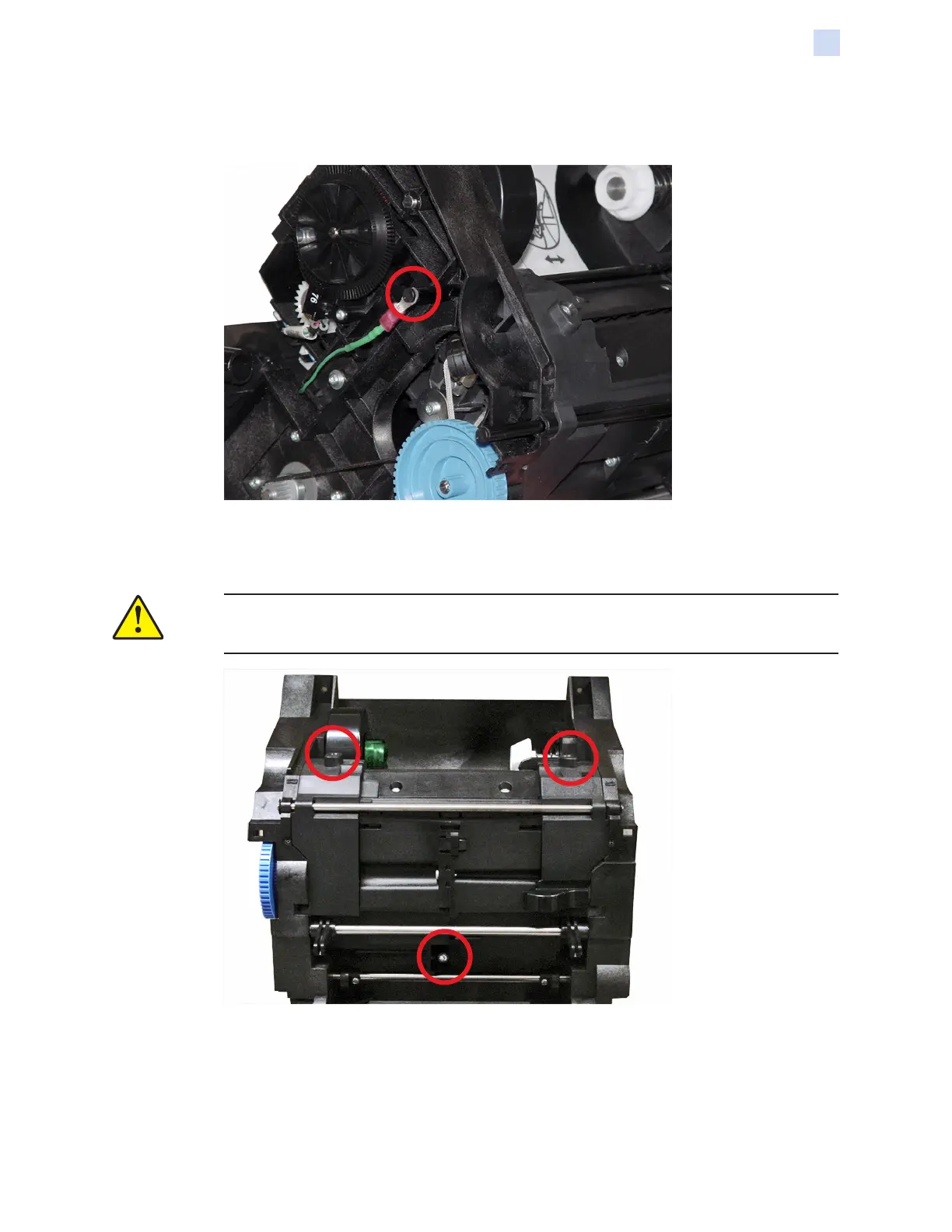

b. Remove the push-pin (circled below) connecting the ground wire to its retaining
shaft.
Step 6. With a TORX T10 driver, remove the three screws (circled below) holding the transfer
station assembly in place. Note that the two blower hose nozzles are held in place by
the two upper screws. Set the nozzles aside.
Caution • When replacing the three screws removed in this step, do not over tighten
(may cause stripping).
