P1086708-001 ZXP Series 9 Card Printer Service Manual 259
Replacement Procedures for the Printer
Procedures: InTM Takeup Assembly

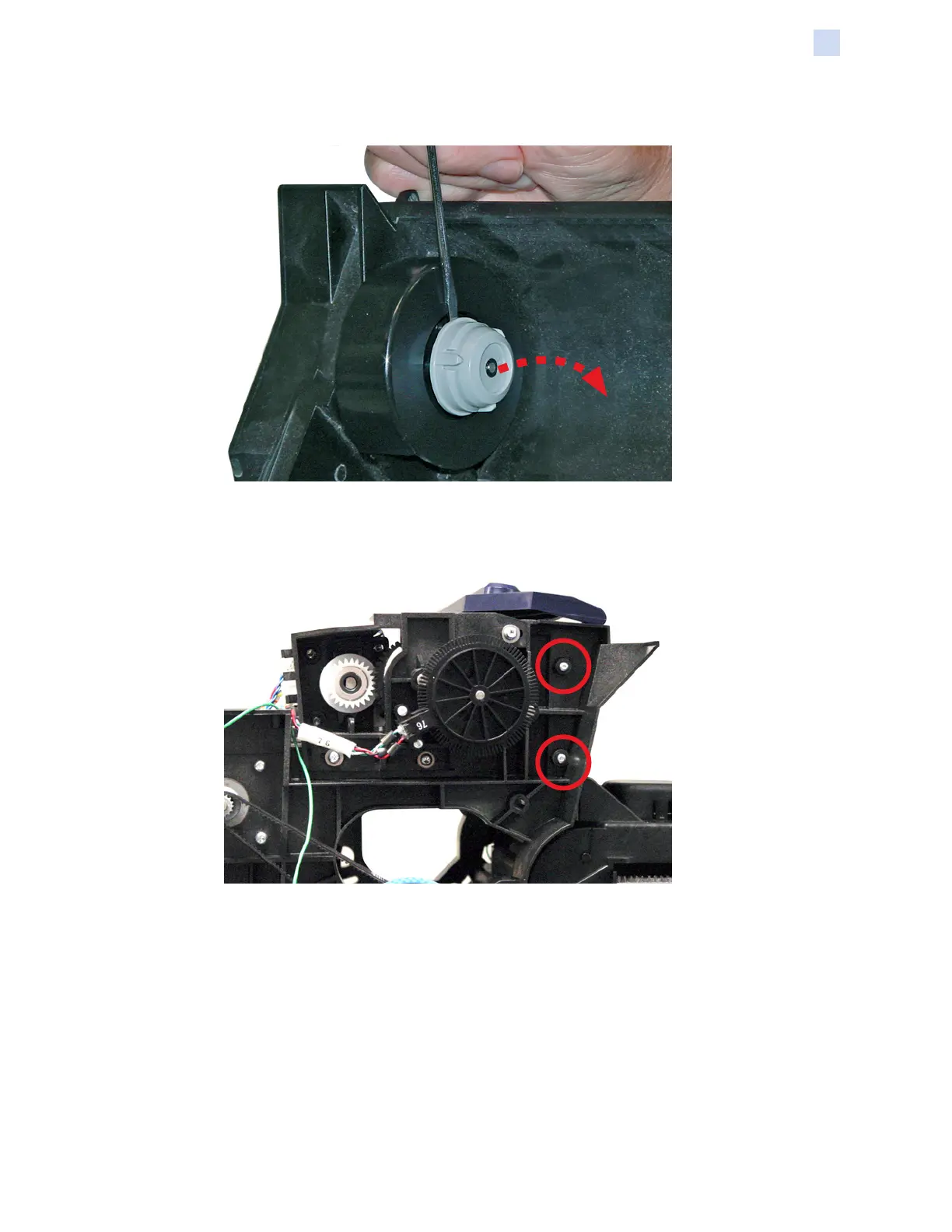

Step 6. With a small at-blade screwdriver, carefully slide the spindle hub off the shaft.
Step 7. With a TORX T10 driver, remove the two screws (circled below) holding the cover in
place.
Step 8. Remove the cover.
To Next Page
