260 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: InTM Takeup Assembly

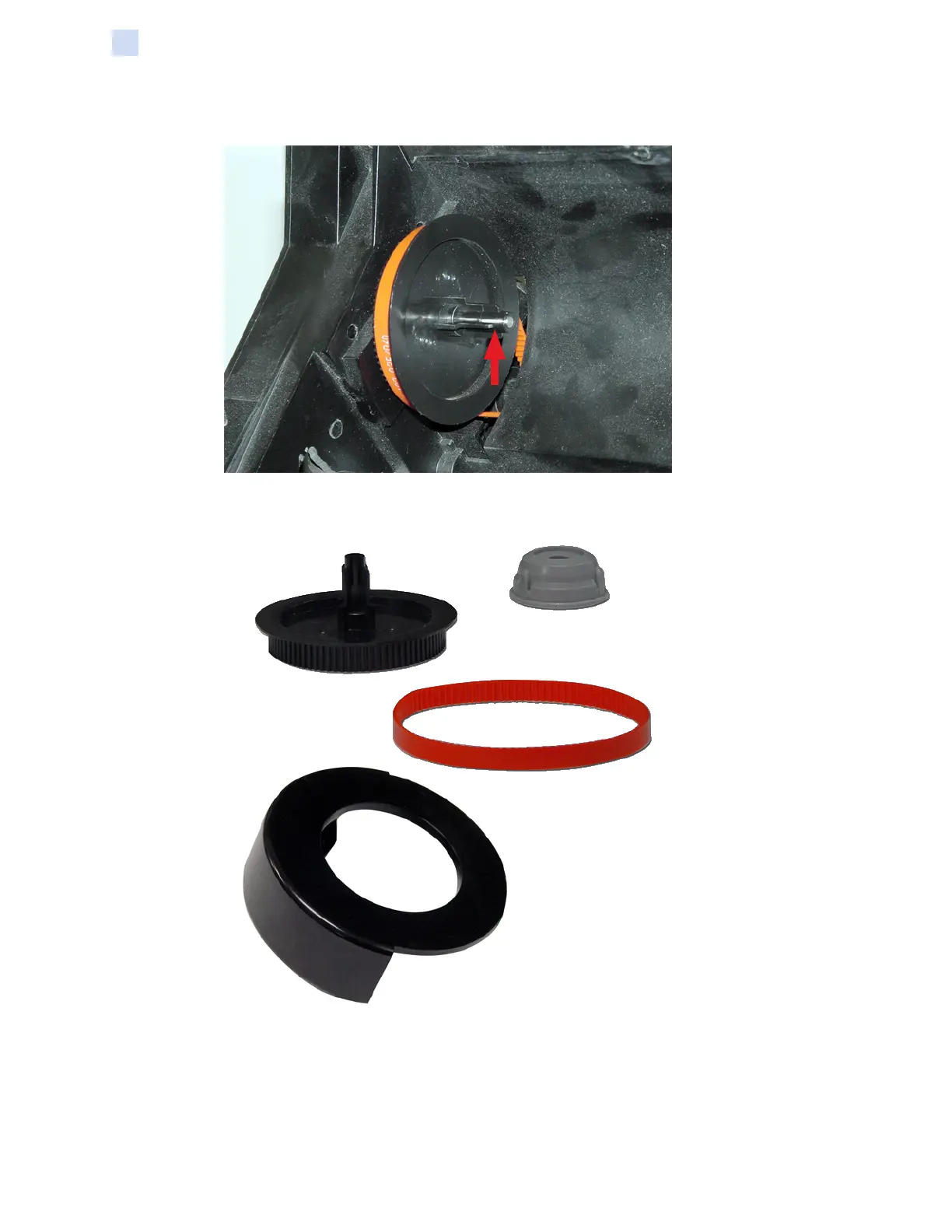

Step 9. Lift the locking tab (arrow below), and slide the pulley off the shaft.
Step 10. Set the spindle hub, pulley, and belt aside.
