P1086708-001 ZXP Series 9 Card Printer Service Manual 263
Replacement Procedures for the Printer
Procedures: InTM Takeup Assembly

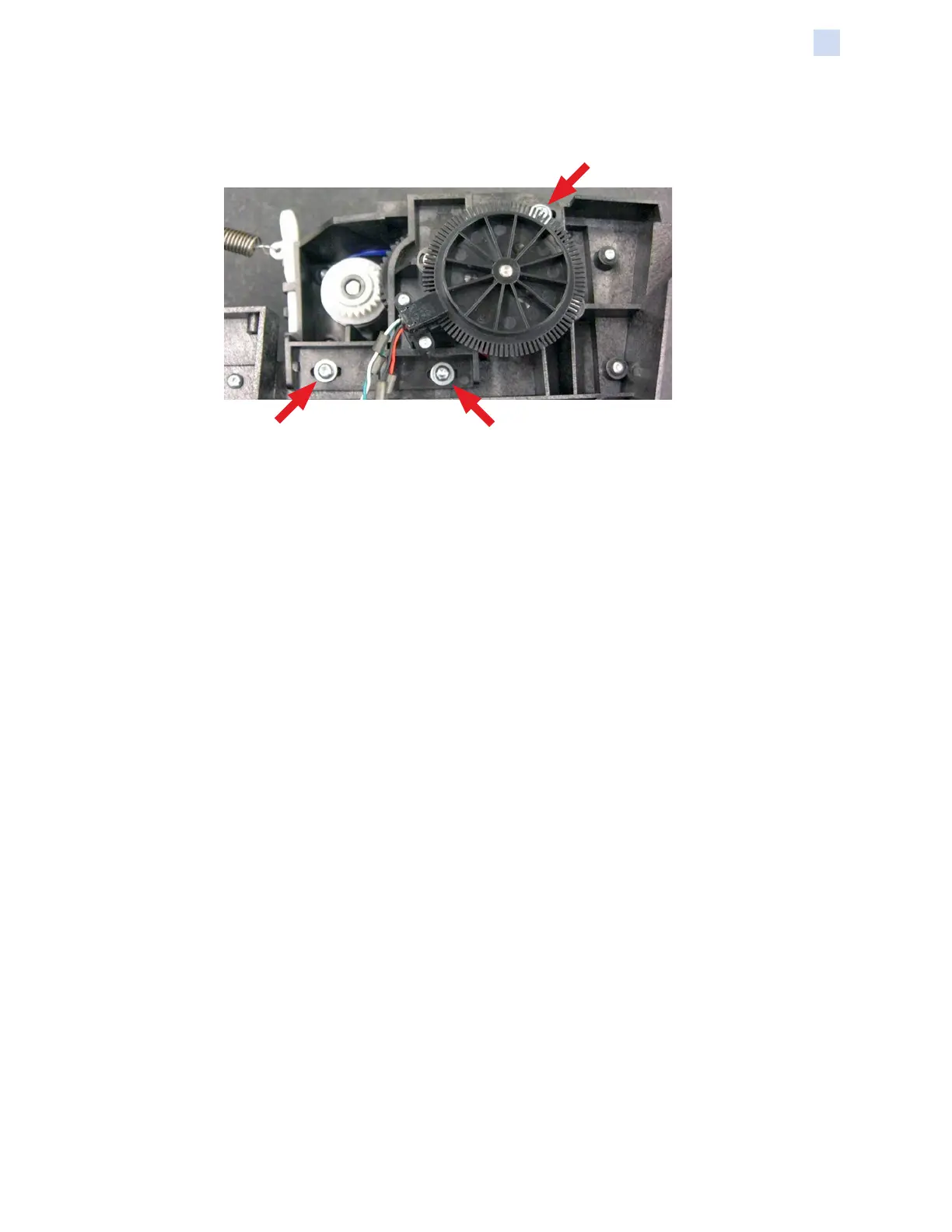

Step 3. Tighten the three screws to 9.0 in-lbs in the order shown.
2
1
3
Step 4. Remove the InTM takeup tool.
Step 5. Connect the ground wire.
Step 6. Connect P24C, P24E, and P24F.
