266 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: InTM Payout Assembly

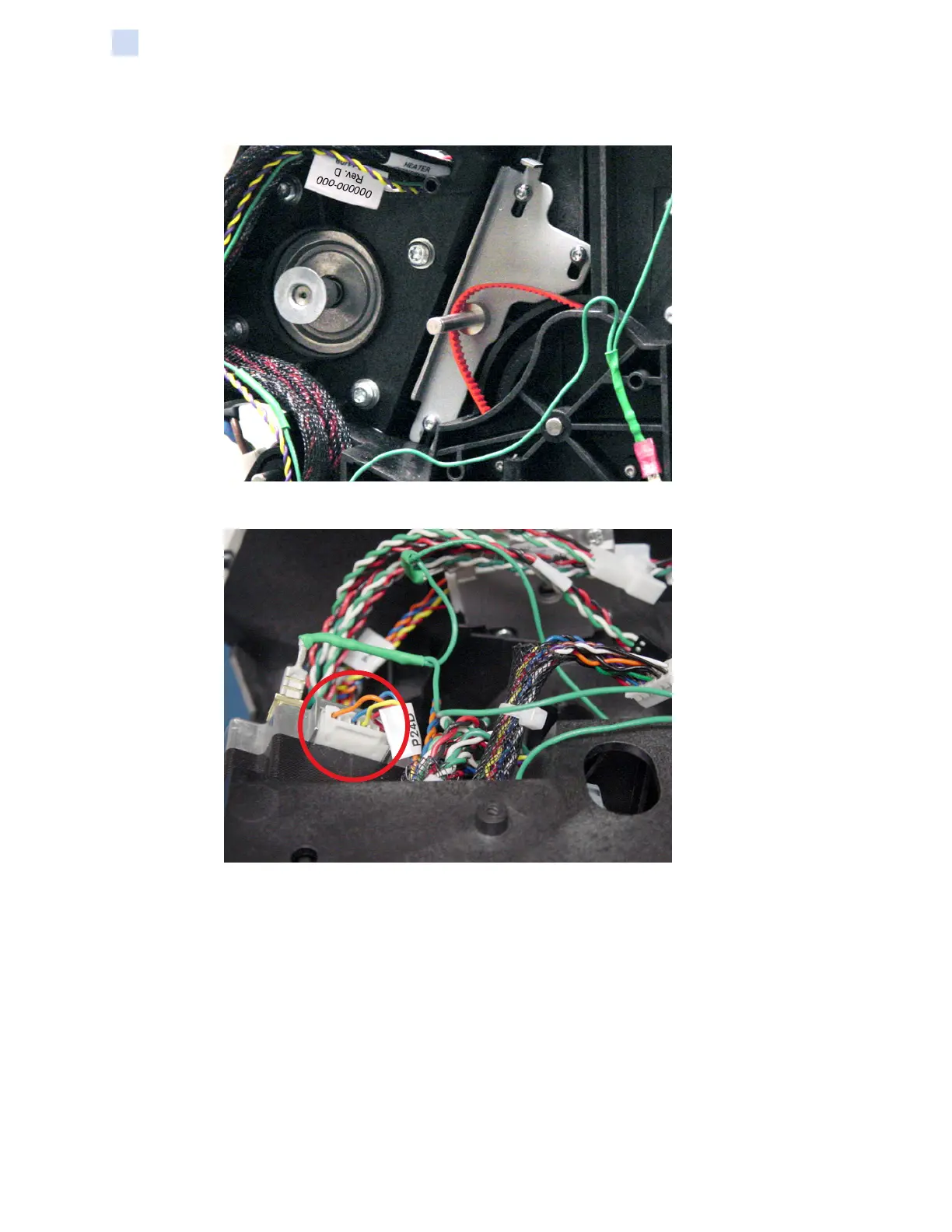

Step 4. Slide the pulley off the shaft.
Step 5. Disconnect P24D (circled below).
Step 6. Disconnect the ground wire (arrow above).
