Zebra ZXP 9 Series

278 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: Transfer Drive Assembly

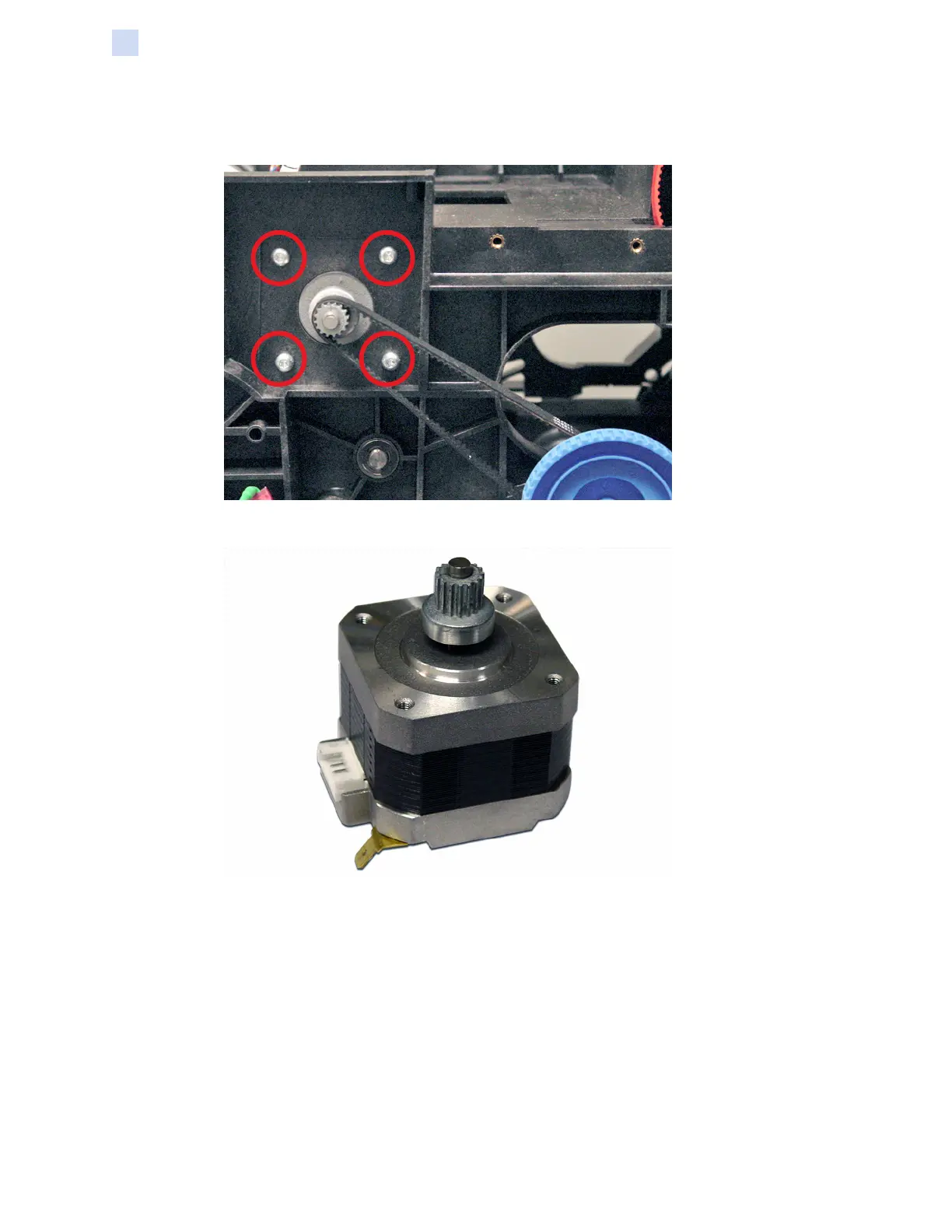

Step 4. With a TORX T10 driver, remove the four screws (circled below) holding the motor in
place.
Step 5. Remove the motor.
