P1086708-001 ZXP Series 9 Card Printer Service Manual 279
Replacement Procedures for the Printer
Procedures: Transfer Drive Assembly

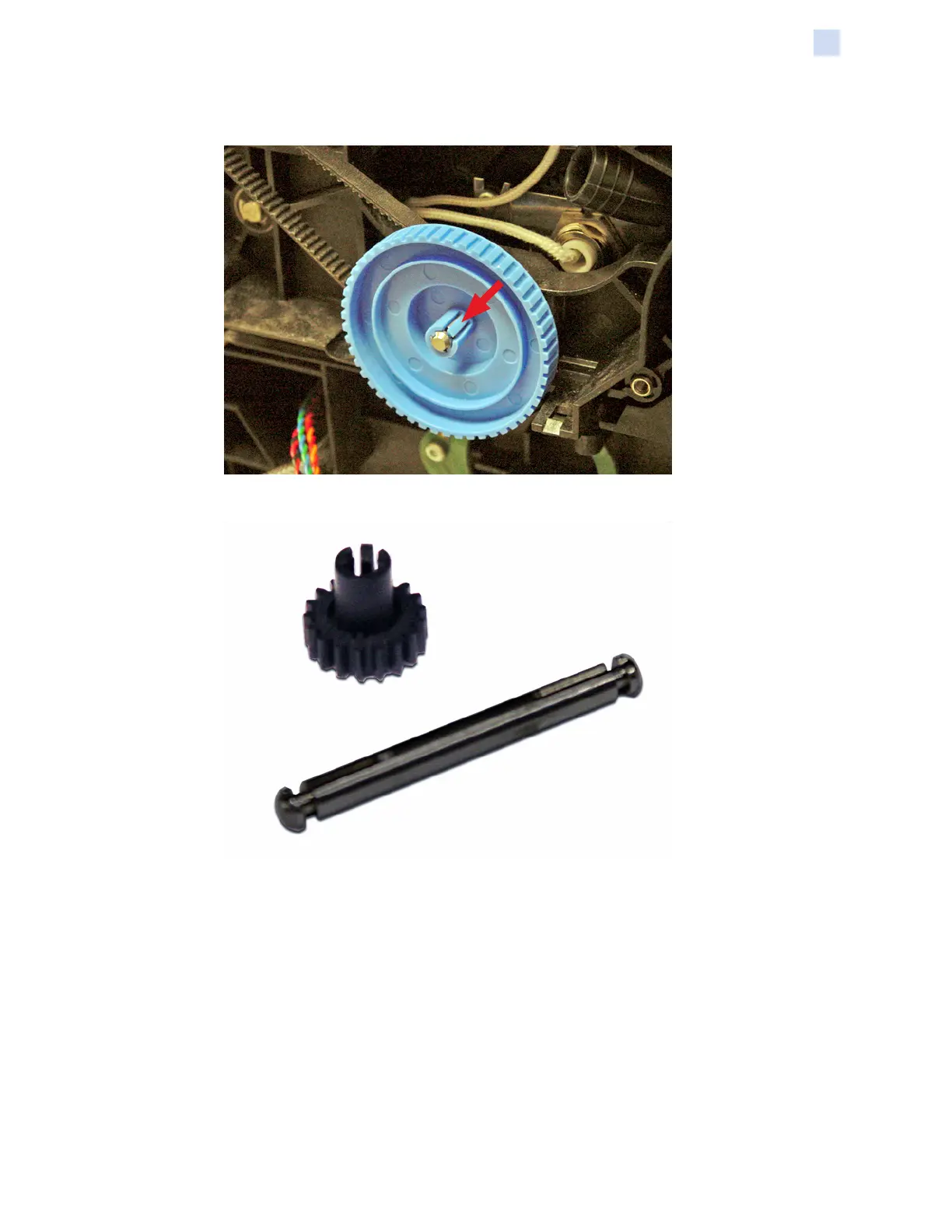

Step 6. Lift the locking tab (arrow below), and slide the pulley and belt off the shaft.
Step 7. Lift the door, and remove the shaft and pulley.
