Replacement Procedures for the Printer
Procedures: Mag Encoder

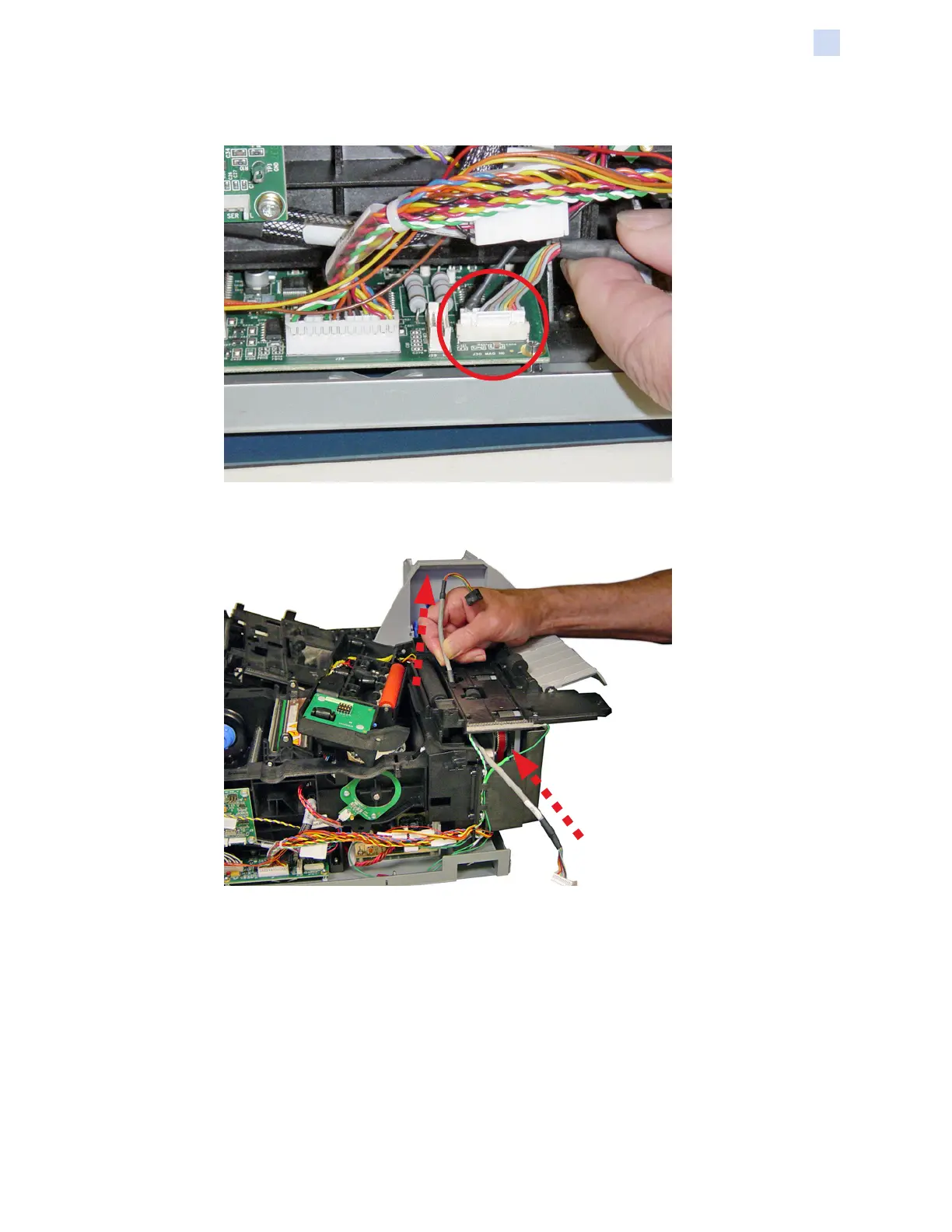

Step 3. Disconnect mag encoder cable plug P30 from the main PCBA (circled below).
Step 4. Carefully pull the mag encoder cable through, and out of, the card transport
assembly.
Step 5. Set the mag encoder aside.
