328 ZXP Series 9 Card Printer Service Manual P1086708-001

Replacement Procedures for the Printer

Procedures: Mag Encoder

Replacement

This procedure requires the Cable Routing Tool 105936-057 (also part of the ZXP9 Repair Kit

105936-058). Contact Zebra Customer Service at +01 877-275-9327 for ordering information.

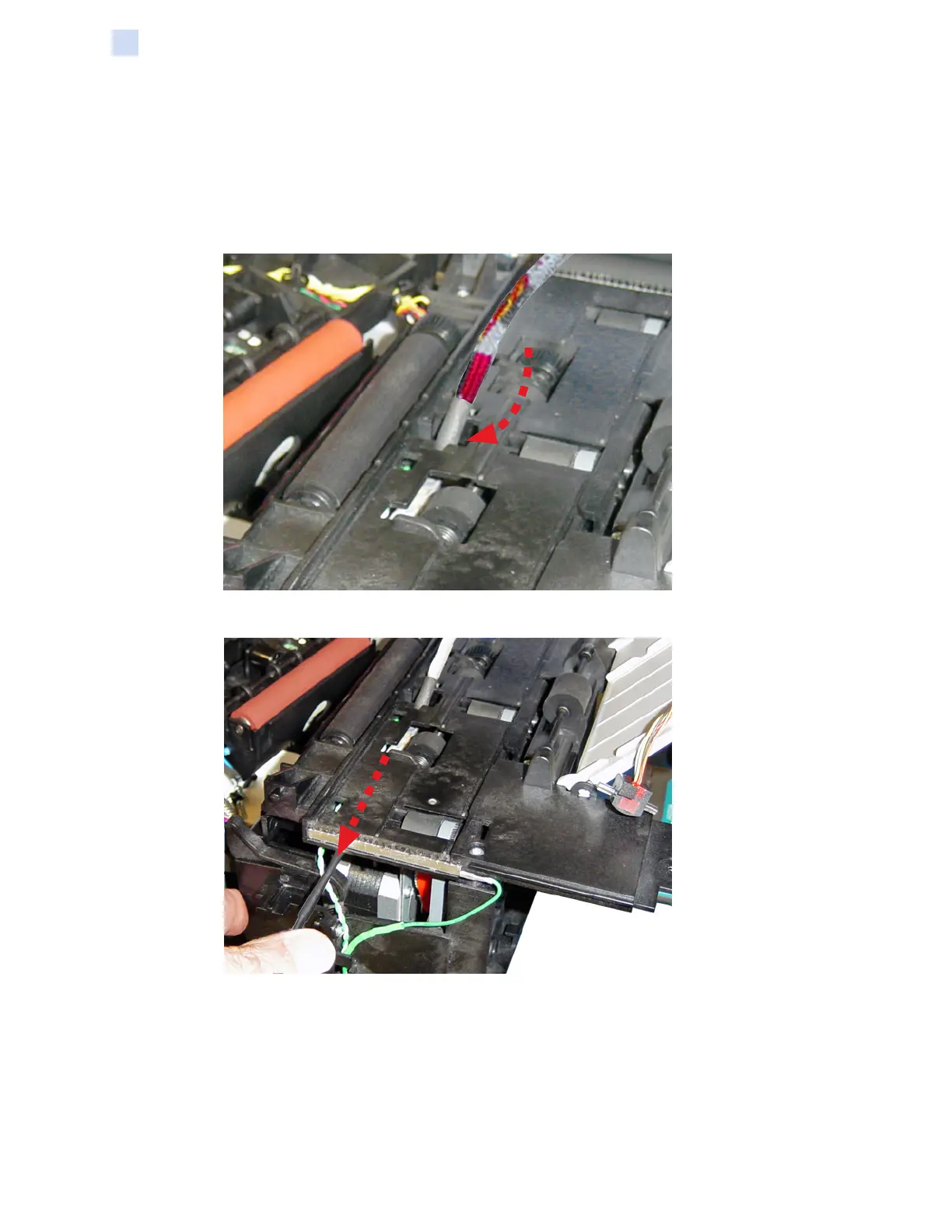

Step 1. Insert the connector end of the mag encoder into the mag head mounting hole (arrow

below).

Step 2. Carefully pull the mag encoder cable through the card transport assembly.
