P1086708-001 ZXP Series 9 Card Printer Service Manual 329

Replacement Procedures for the Printer

Procedures: Mag Encoder

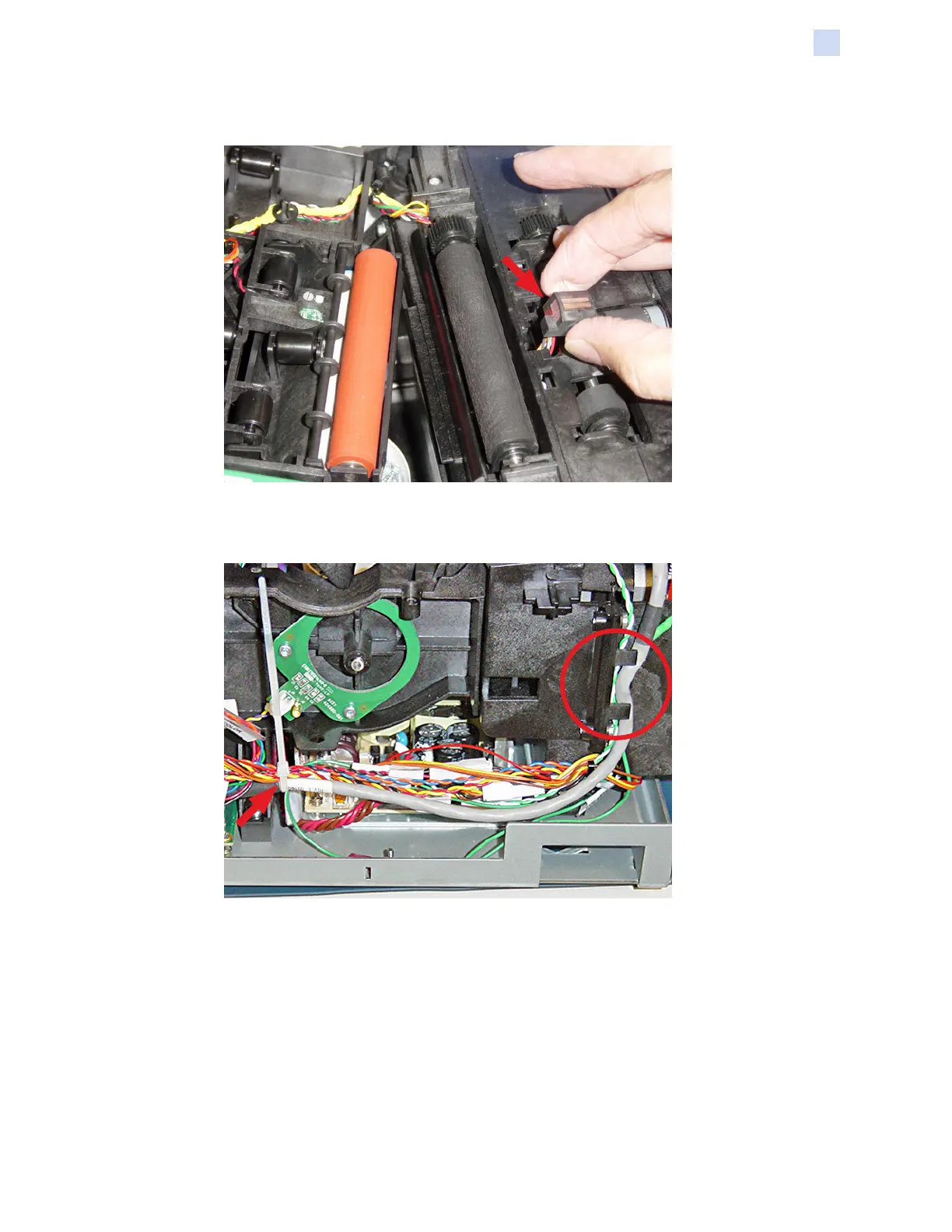

Step 3. Snap the mag encoder in place.

Step 4. Route the mag encoder cable under the cable clips (circle below).

Step 5. Secure the mag encoder cable to adjacent wiring (arrow below) using a zip tie.
