P1086708-001 ZXP Series 9 Card Printer Service Manual 381
Replacement Procedures for the Laminator
Procedures: Cassette Latch Assembly (Top & Bottom)
Replacement

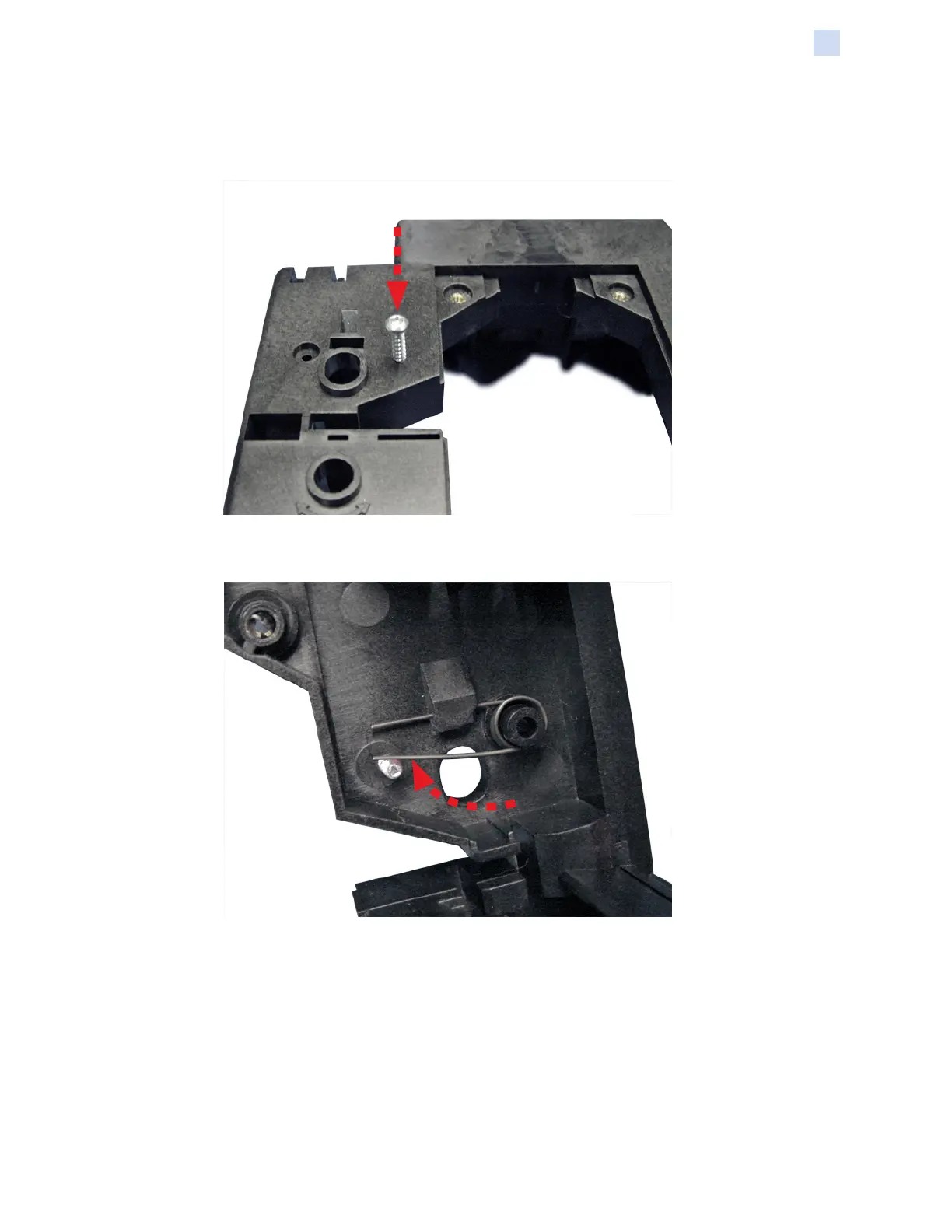

Step 1. Install a screw (SCR,PH,TORX,PLAST,4-.50) in the hole in the front frame.
Step 2. Position the torsion spring against the screw Note that this Torsion Spring was
released when the front frame was removed (see “Front Frame” on page 376).
