382 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Cassette Latch Assembly (Top & Bottom)

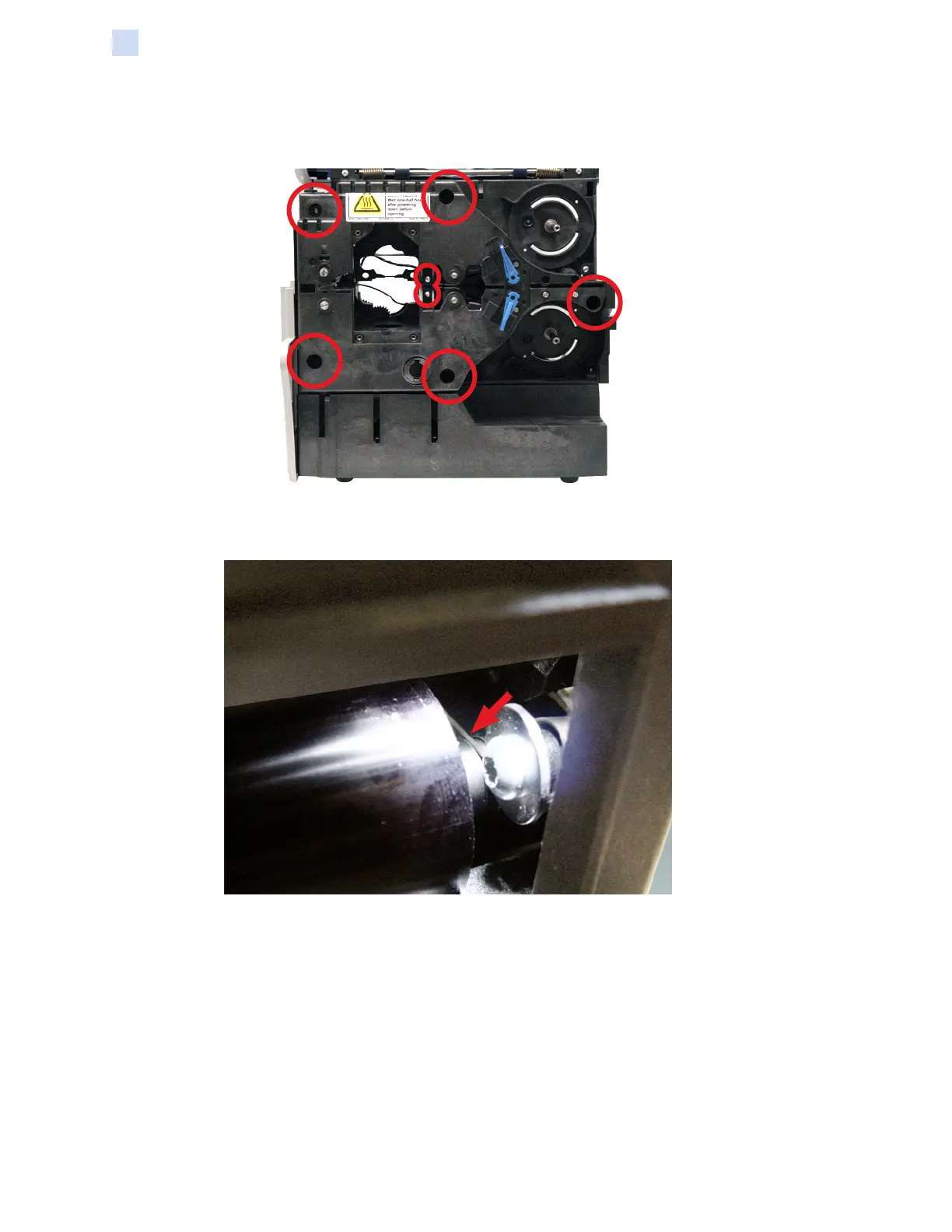

Step 3. With a TORX T10 driver, install the seven mounting screws (circled below) that hold
the front frame in place.
Step 4. Remove the screw installed in Step 1. Ensure that the torsion spring is properly
aligned on the exit roller bushing.
