P1086708-001 ZXP Series 9 Card Printer Service Manual 407
Replacement Procedures for the Laminator
Procedures: Laminator Beam

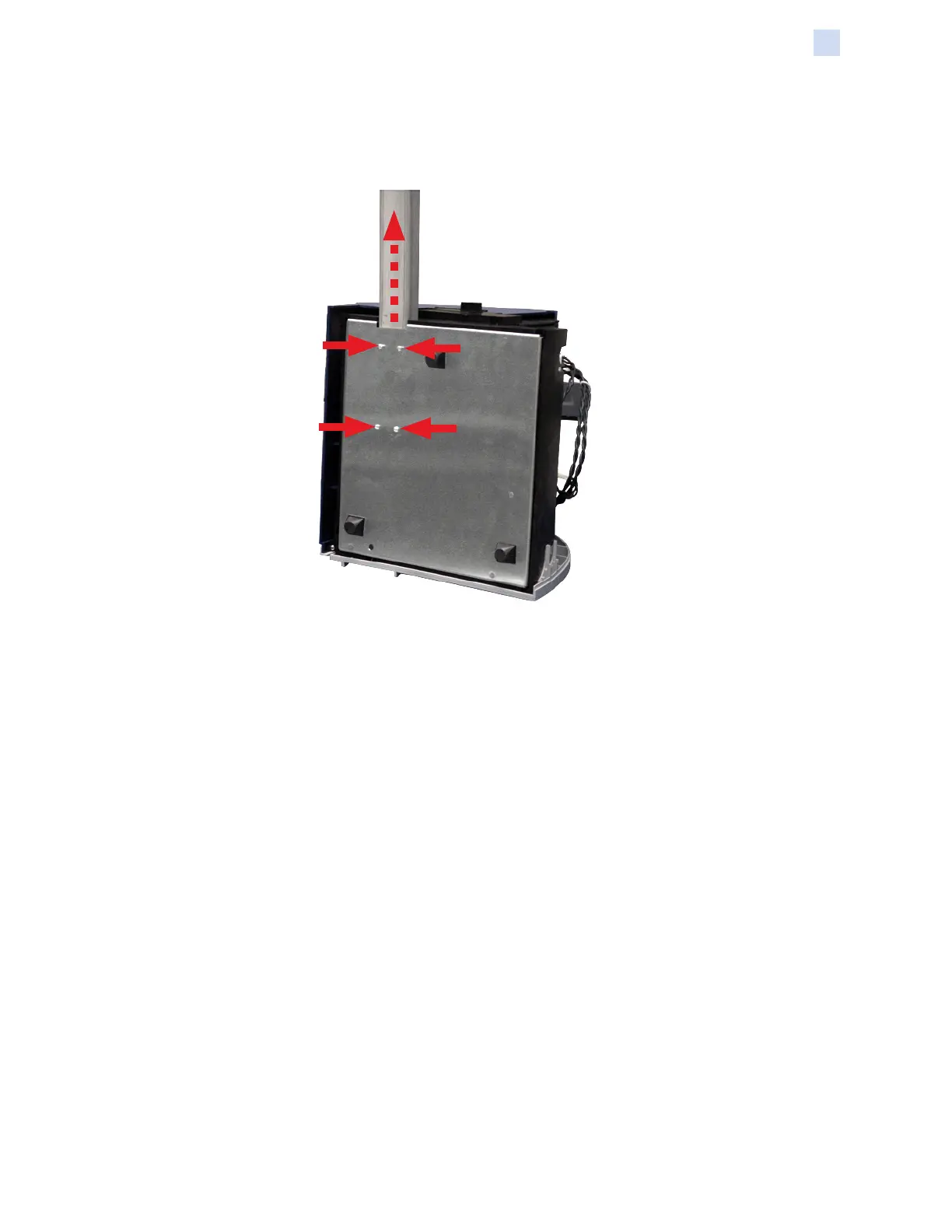

Step 6. Remove the support attachment beam from the laminator:
a. Set the laminator on its left side.
b. Remove the four machine screws (arrows above) that attach the support
attachment beam to the laminator.
c. Slide the support attachment beam out of the slot (dashed arrow above) on the
right side of the laminator.
