408 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Laminator
Procedures: Laminator Beam
Replacement
Step 1. Attach the replacement support attachment beam to the laminator:
a. Set the laminator on its left side.

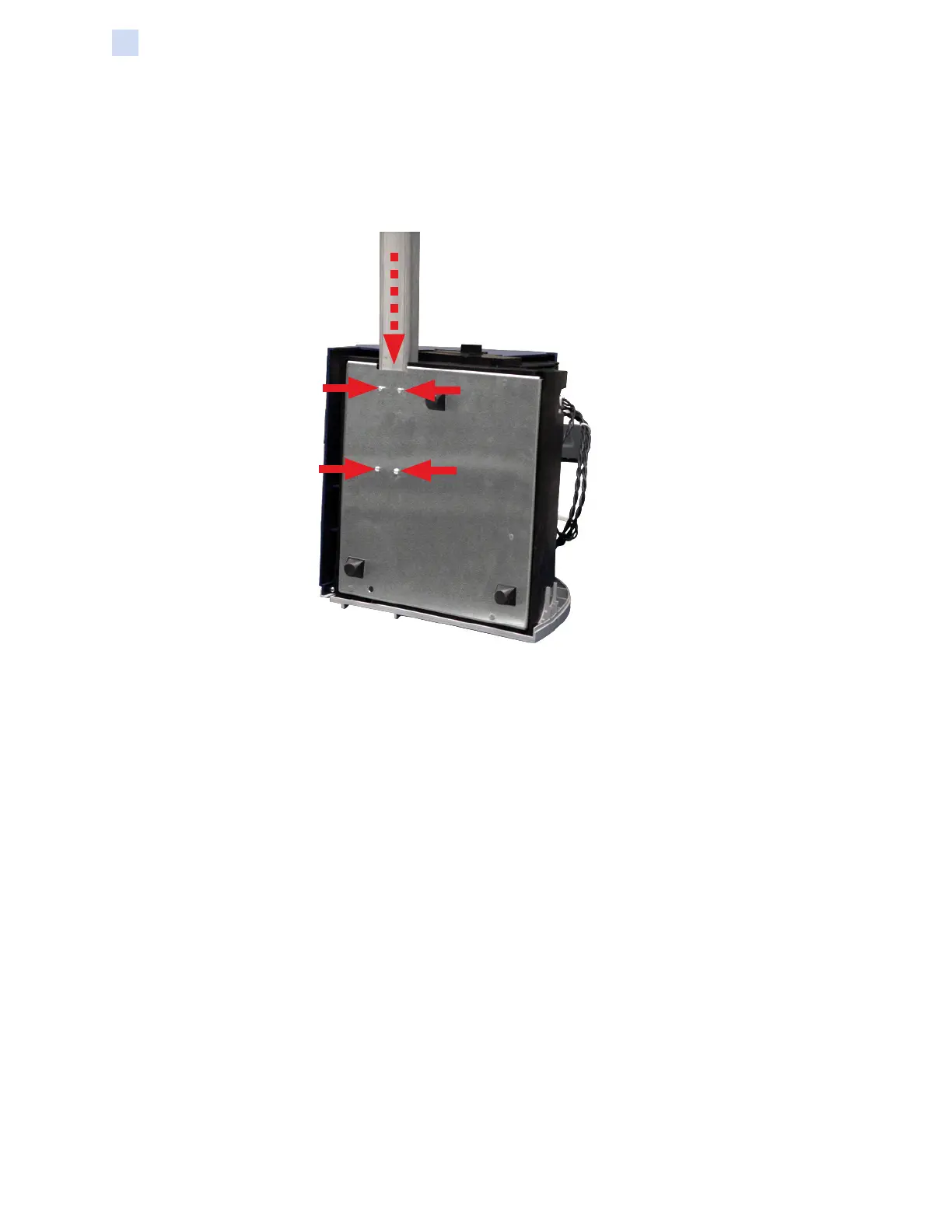

b. Slide the support attachment beam into the slot (dashed arrow above) on the
right side of the laminator.
c. Align the four mounting holes on the laminator (arrows above) with the four
mounting holes on the support attachment beam.
d. Using four machine screws, attach the support attachment beam to the laminator.
To Next Page
