NanoSuite 4
Agilent Nano Indenter G200 User’s Guide 4-20

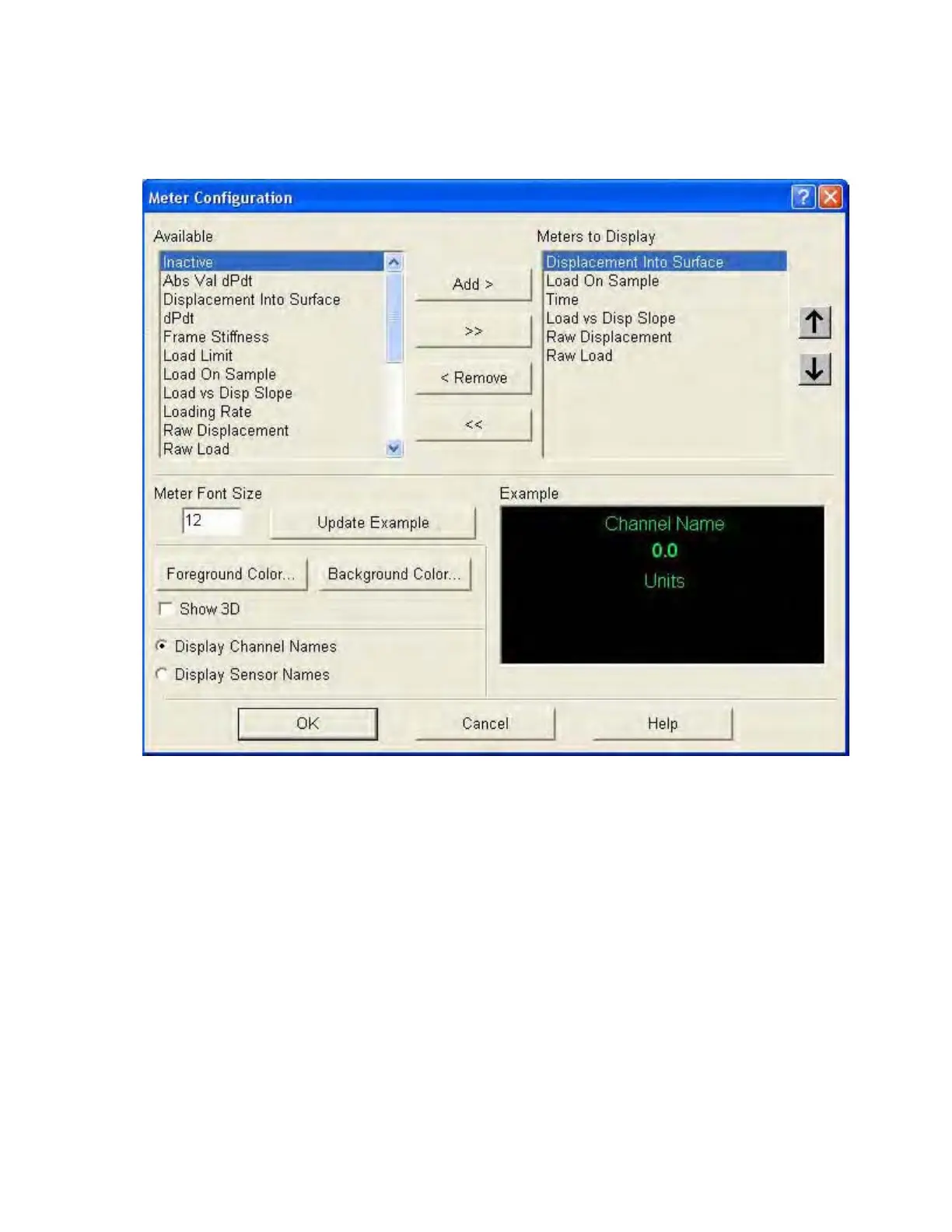

Figure 4-21Meter Configuration dialog box
Changing Meters and Their Order
In the Meter Configuration dialog box, the meters available to you are
shown in a list under the label Available. Add or remove a meter from
the Meters to Display list by clicking on the Add
> or < Remove
button.
To add all available meters, click the Add All button (>>). To remove
all meters from the Meters to Display list, click the Remove All button
(<<).
To change the order in which the meters appear on your screen, select a
meter and use the Up and Down arrows next to the Meters to Display
list to promote or demote a meter within the list.
