Instrument Reference 3
Agilent Nano Indenter G200 User’s Guide 3-15

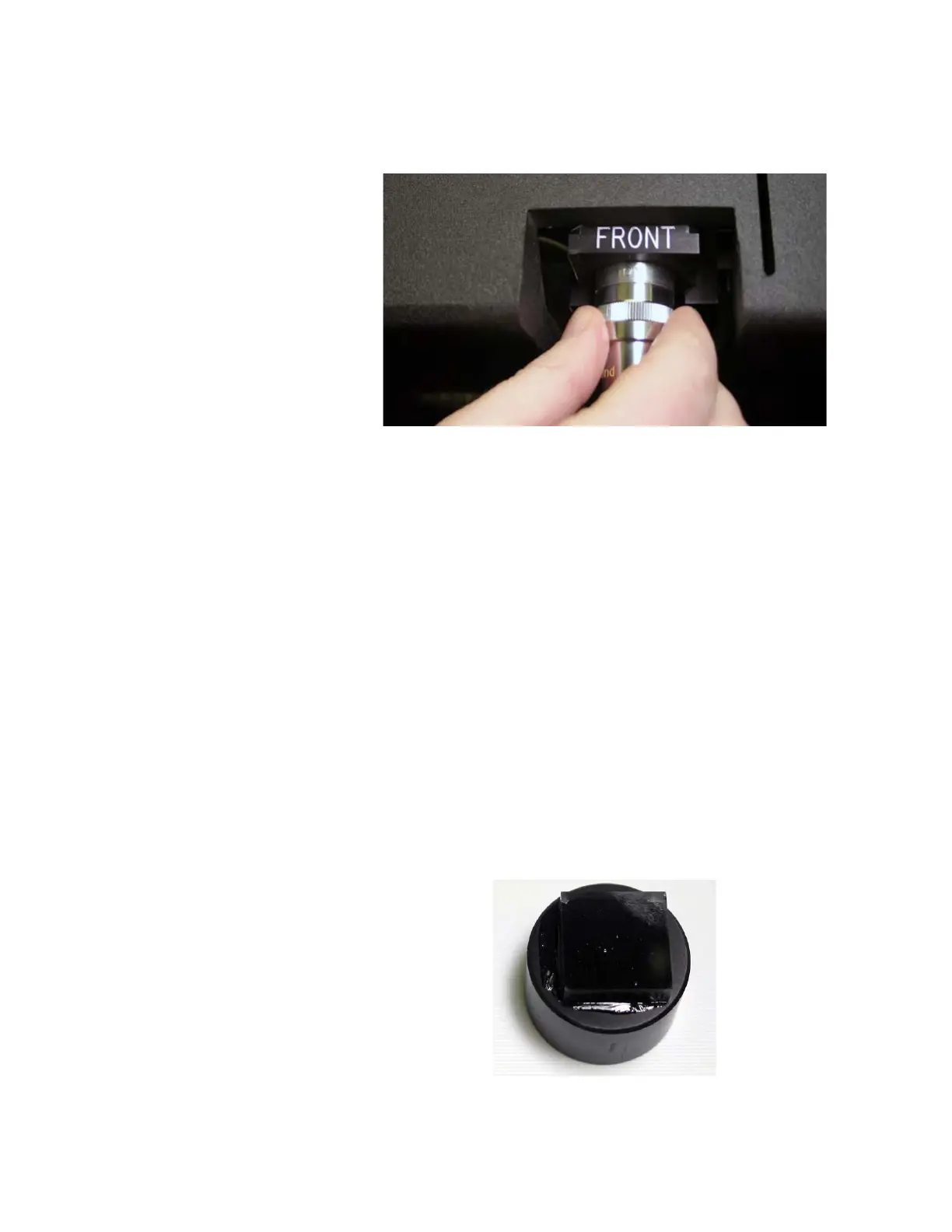

Figure3- 18Correct orientation for objective
Two main characteristics of the objectives are parcentricity and
parfocality. Parcentricity refers to the location of the center point of the
image of the objective, relative to other objectives used in the same
system. For example, if an object at the center of an image formed using
the 10
X objective is at the center of an image formed using the 40 X
objective, then the two objectives are parcentric.
Parfocality refers to the location of the focal plane of an objective,
relative to other objectives used in the same system. When swapping
objectives, the focus of the microscope should not require significant
adjustment.
Parfocality and parcentricity are set at the factory and should not require
further adjustment unless directed by an authorized Agilent certified
technician.
Sample Disks
The sample disks fit within the Sample Tray and are used to hold
samples. Figure 3- 19 shows a sample disk with a sample mounted on it.
Figure3- 19G200 sample disk
