NanoSuite 4
Agilent Nano Indenter G200 User’s Guide 4-63
Review Page
The Review page is used for reviewing the data collected from tests.
Note the
Required Inputs Panel area in the Test page view will be
displayed as the Data Panel in the Review page view.

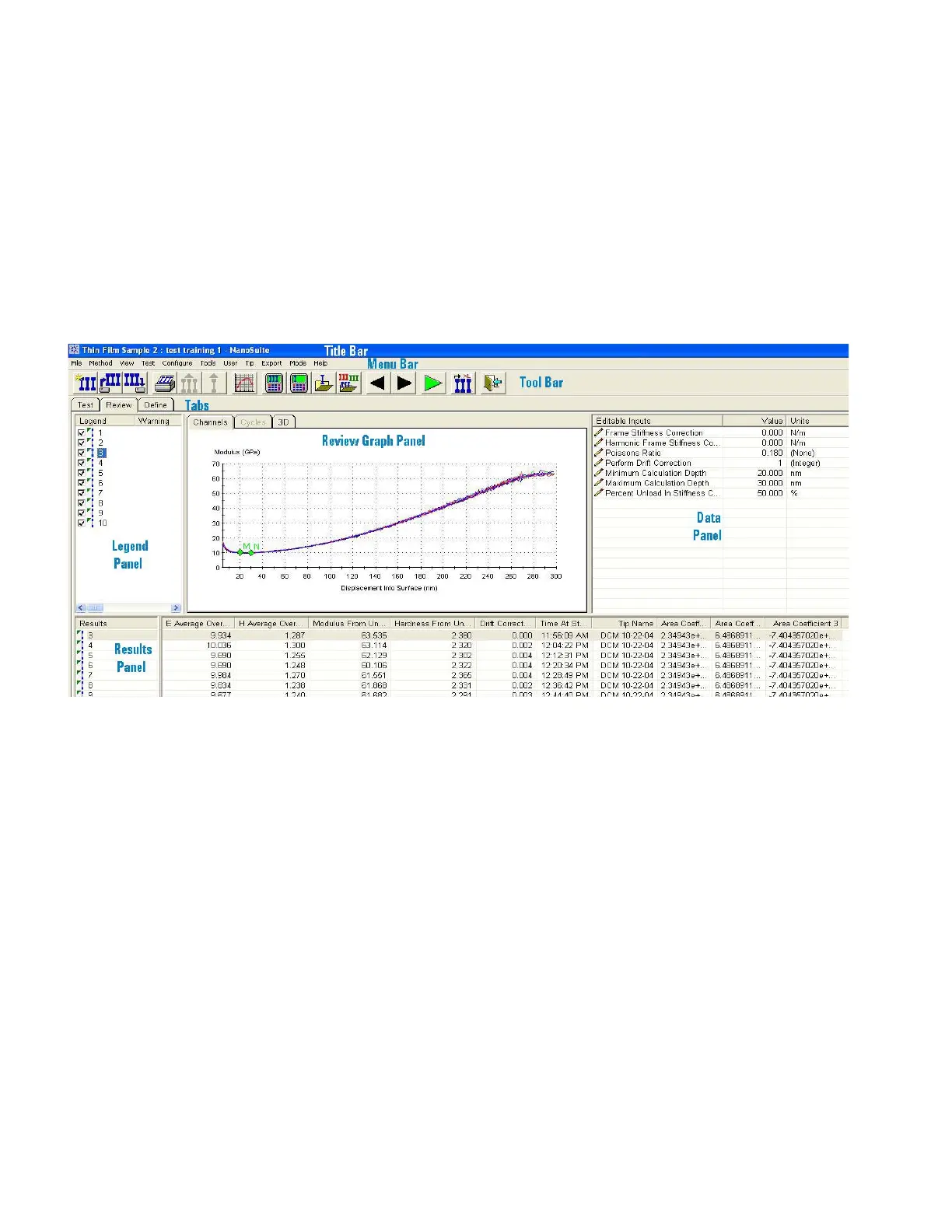

An example of the review page is shown in Figure 4-69.
Figure 4-69Example of the Review Page in NanoSuite
Legend Panel
Figure 4-70 on page 4-64 shows the Legend panel in the Review page.
The Legend panel is a table with three columns:
• Legend
• Warning
• Comment
Note that in the default view of the Review page, the Comment column
may not be visible. To reveal the Comment column, click and drag the
right side of the Legend panel to widen it. The current test is highlighted
in the Legend panel, such as Test #10 in the following figure.
