NanoSuite 4
Agilent Nano Indenter G200 User’s Guide 4-64

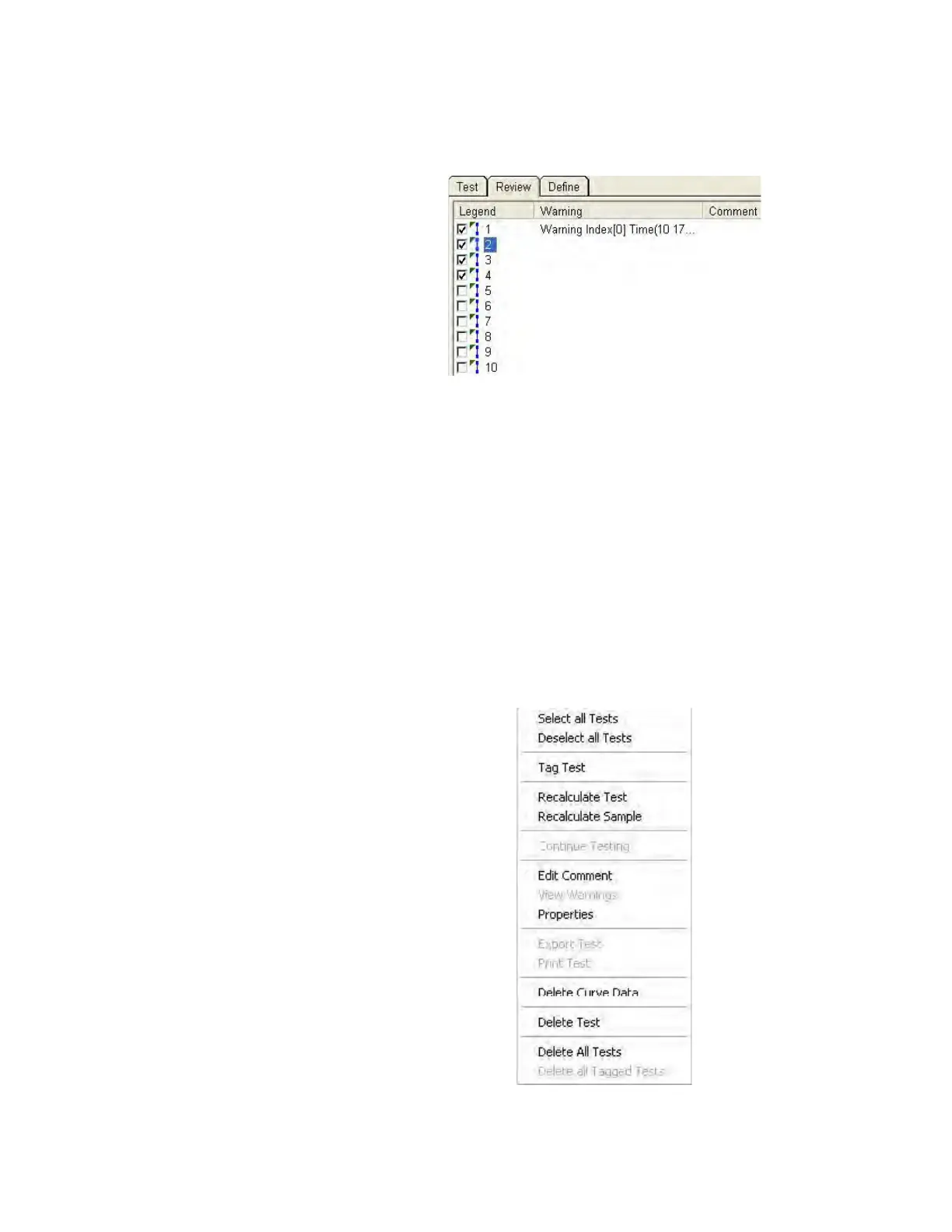

Figure 4-70Legend panel in Review page
In the Legend column, the checkboxes next to the test numbers
determine whether those tests appear in the review graph. Highlighting a
test (by clicking on its number) makes it active. Only one test can be
highlighted at one time.
The Warning column shows summary warning messages for each test.
The Comment column is a user-modifiable field for commenting on a
test. The Edit Comment command from the right-click menu invokes a
dialog box for entering comments.
Right-clicking in the Legend panel provides the commands shown in
Figure 4-71.
Figure 4-71Legend panel right-click menu
