Agilent Technologies Nano Indenter G200 User Manual

NanoSuite 4
Agilent Nano Indenter G200 User’s Guide 4-82
3D Tab
NanoSuite now handles 3D images in a new way. Previously, the 3D
images were treated much like the 2D graph in which you selected a test
to graph.
However, this limited the 3D images to one image per test. The new data
handling allows you to create an endless number of 3D images with

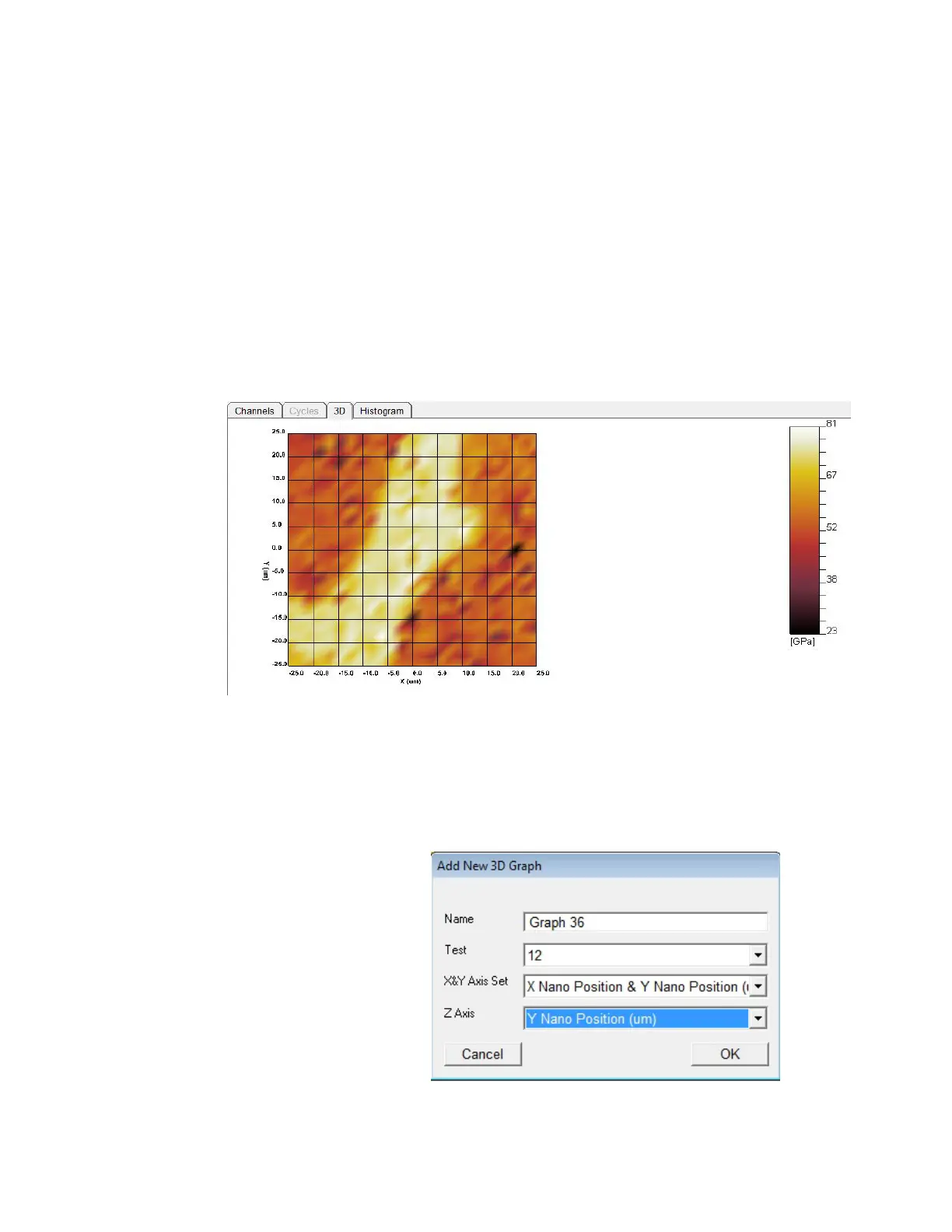

advanced image manipulations. The 3D tab generates a default 3D
image of Scan Displacement as shown in
Figure 4-86
.
Figure 4-86I3D Review Graph Panel
The user can generate additional images by right-clicking on the legend
to the left of the 3D window. This will bring up the following Add
Graph dialog box in
Figure 4-87.
Figure 4-87Add New 3D Graph
