Instrument Reference 3
Agilent Nano Indenter G200 User’s Guide 3-3
Adjusting the iris diaphragm is sometimes useful in finding the surface
of very smooth or translucent specimens. By partially closing the iris
and then focusing on the iris itself, you can get a very good estimate of
the focal point on the sample.
Computer/Central Processing Unit (CPU)
The CPU provided with the Nano Indenter G200 serves as the host
computer for the NanoSuite control software. All collected data are
stored on the hard drive of your G200 computer. Electronic cards
integrated into your computer manage the communication between the
software and the external electronics.
The CPU is used to run the NanoSuite control software and to manage
the communication between NanoSuite and the external electronics. The
major components of the computer are hard drive, expansion bay, CD-R
drive, printer port, monitor port, keyboard port, and mouse port.
Controller

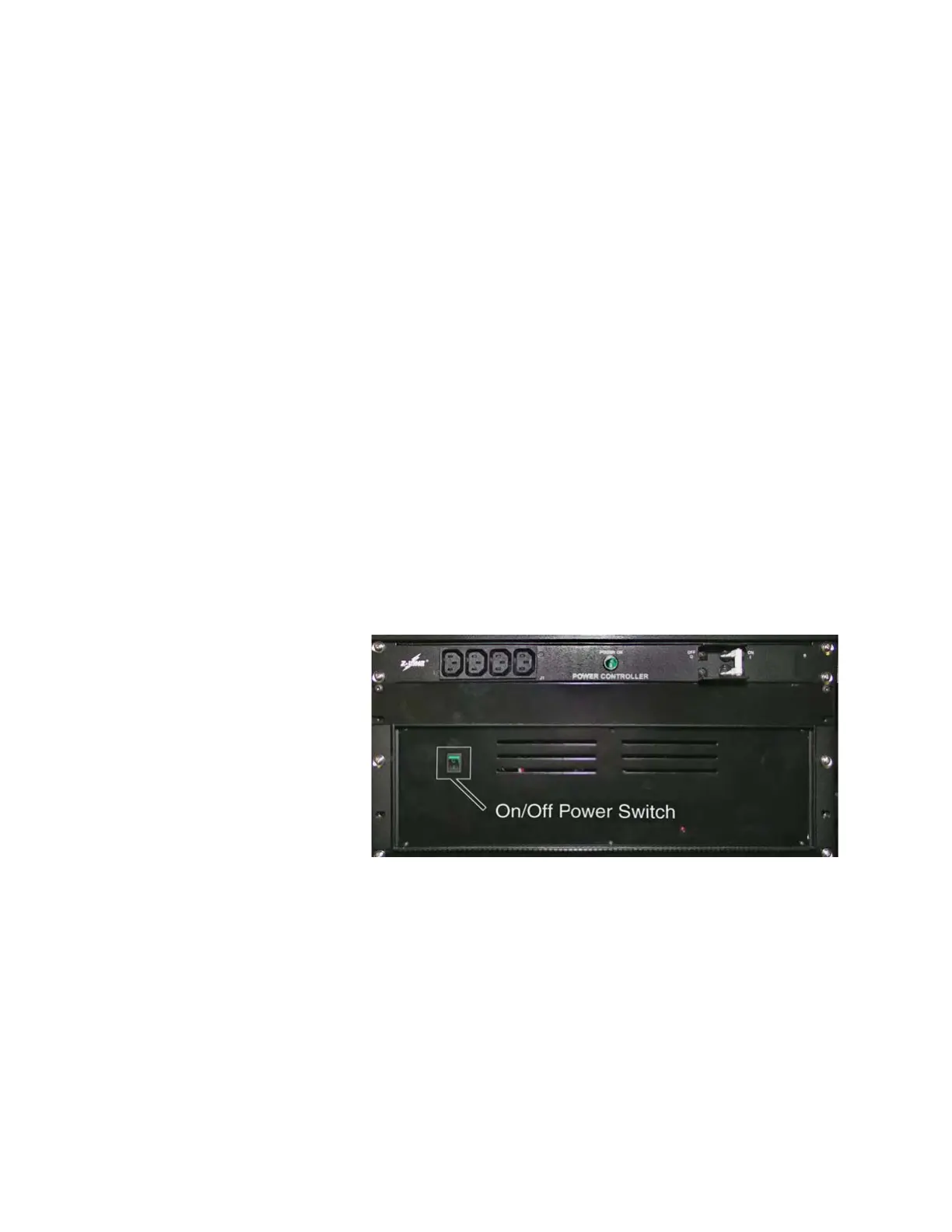

Shown in Figure 3- 3, the controller is used to house and power the
electronics for acquiring and controlling data.
Figure3- 3Controller for G200
Crystalbond Hot Melt
Crystalbond hot melt (Figure 3- 4 on page 3-4) is a thermoplastic
polymer that can be used to mount specimens to the aluminum sample
disks provided with your G200.
