Instrument Reference 3
Agilent Nano Indenter G200 User’s Guide 3-20

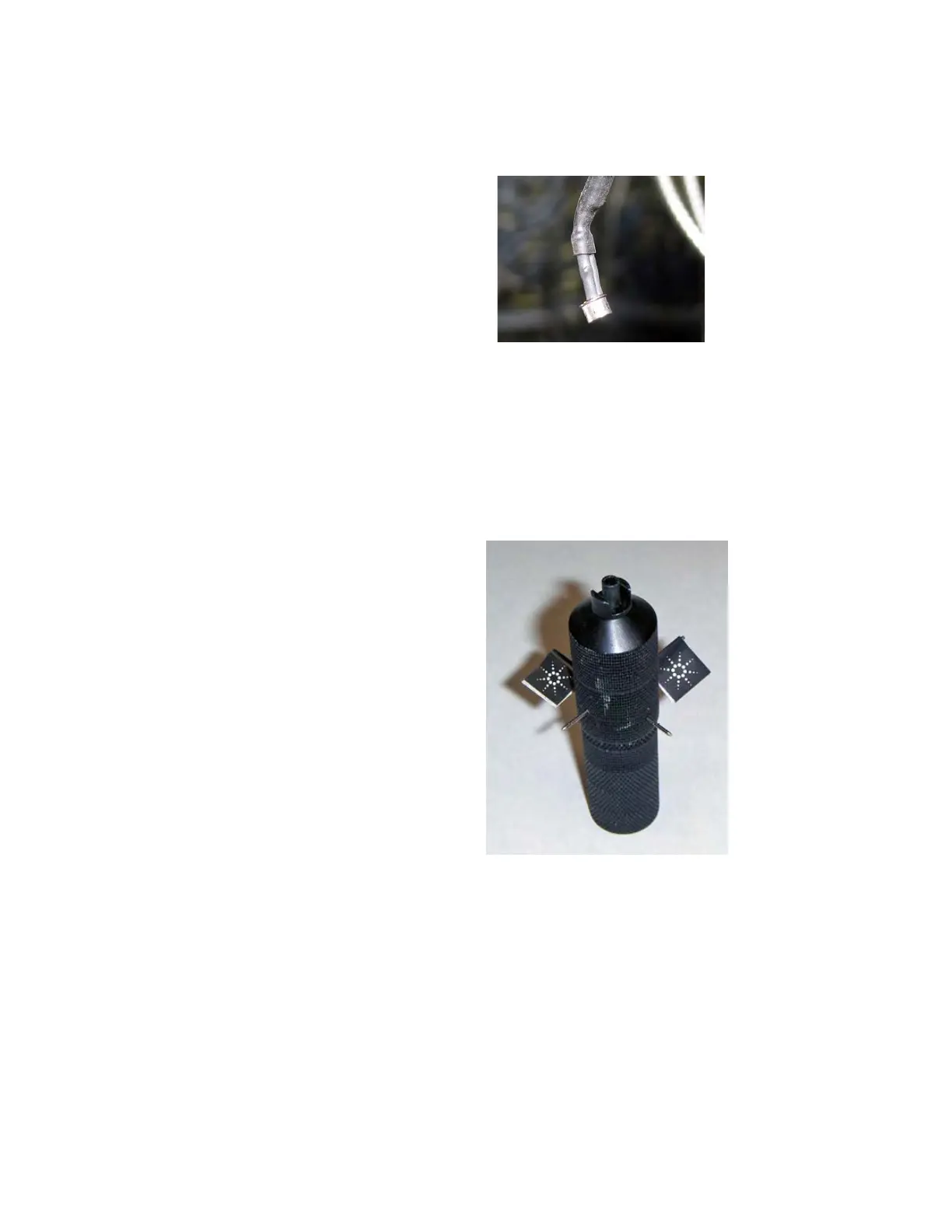

Figure3- 24Temperature probe for the G200
Tip-Change Tool
The tip-change tool (Figure 3- 25) is used for removal or insertion of the
diamond Indenter tip. The tool is used to grip the diamond tip and the
tip-retaining nut.
Figure3- 25Tip-change tool
See Indenter and Tip-Retaining Nut. Also see Changing the Indenter in
Chapter 6, "Commonly Used Procedures".
Tip-Retaining Nut
Shown in Figure 3- 26, the tip-retaining nut is used to attach the tip to
the Indenter shaft.
