Agilent Technologies Nano Indenter G200 User Manual

Dynamic Contact Module II B
Agilent Nano Indenter G200 User’s Guide B-6
Switching to the XP Head
Switching from the DCM II head to the XP head is very similar to
Switching to the DCM II Head.
1 Park the head by choosing System > Displacement Control Panel.
2 In the Displacement Control Panel dialog box, click Park Head.
3 Click CLOSE.
4 Choose Configure > Workspace....
5 In the Frame Workspace Configuration dialog box, select the XP
radio button as shown in
Figure B-9.

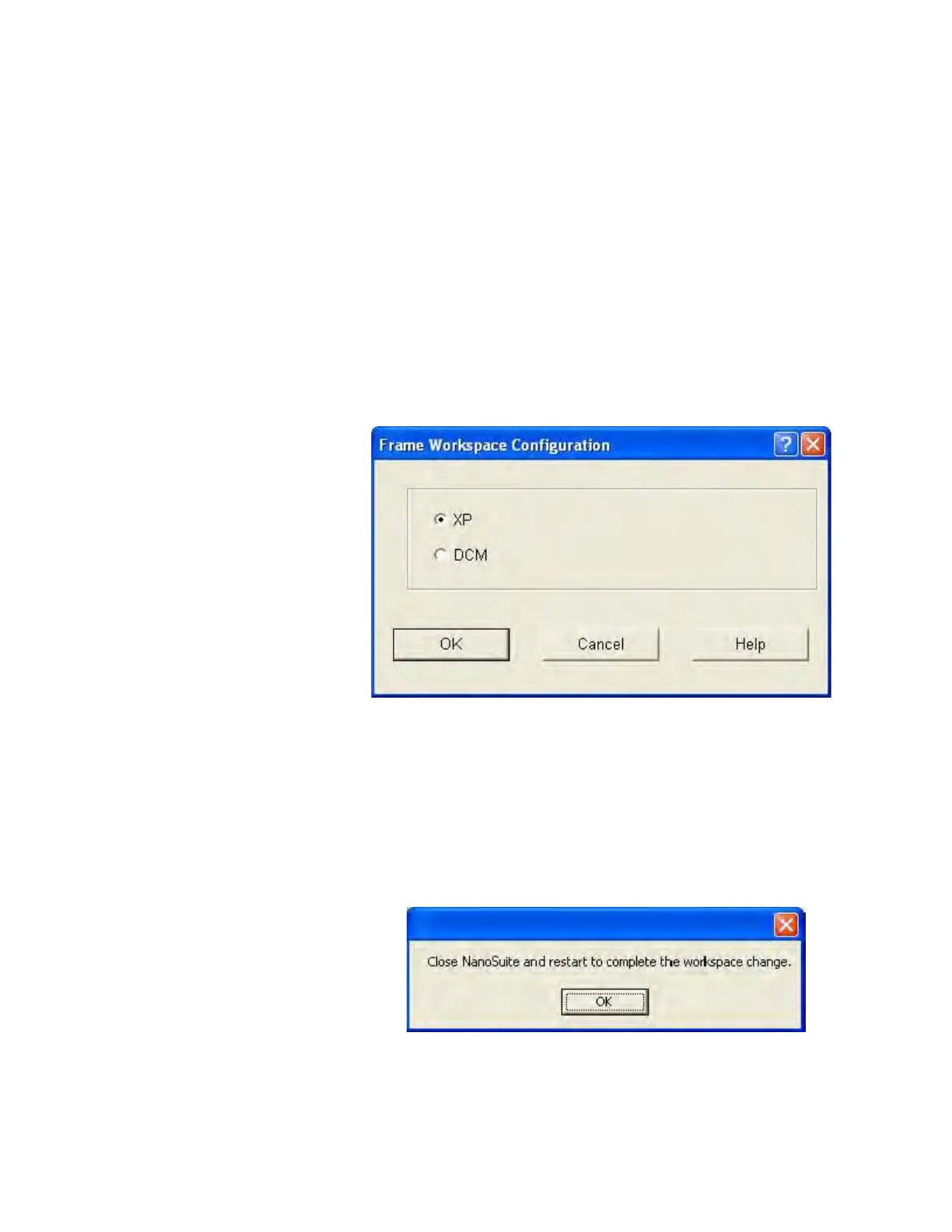

Figure B-9Set Frame Workspace Configuration to XP
6 Click OK.
7 Click Yes in the Caution! dialog box.
A message will be displayed, similar to that shown in Figure B-10.
Figure B-10Request to restart NanoSuite
8 Click OK.
