Agilent Technologies Nano Indenter G200 - Configure Tip

NanoSuite 4
Agilent Nano Indenter G200 User’s Guide 4-32
Configure Tip
This command enables you to add or remove tips and change their
parameters via the Configure Tip Parameters dialog box shown in
Figure 4-35.
1 Highlight the parameter in question and type in the new parameter
value.
2 Click OK to open a confirmation box.
3 Click OK to continue with your configuration changes.
NanoSuite will re-analyze the data for the current sample using the new
tip configuration.

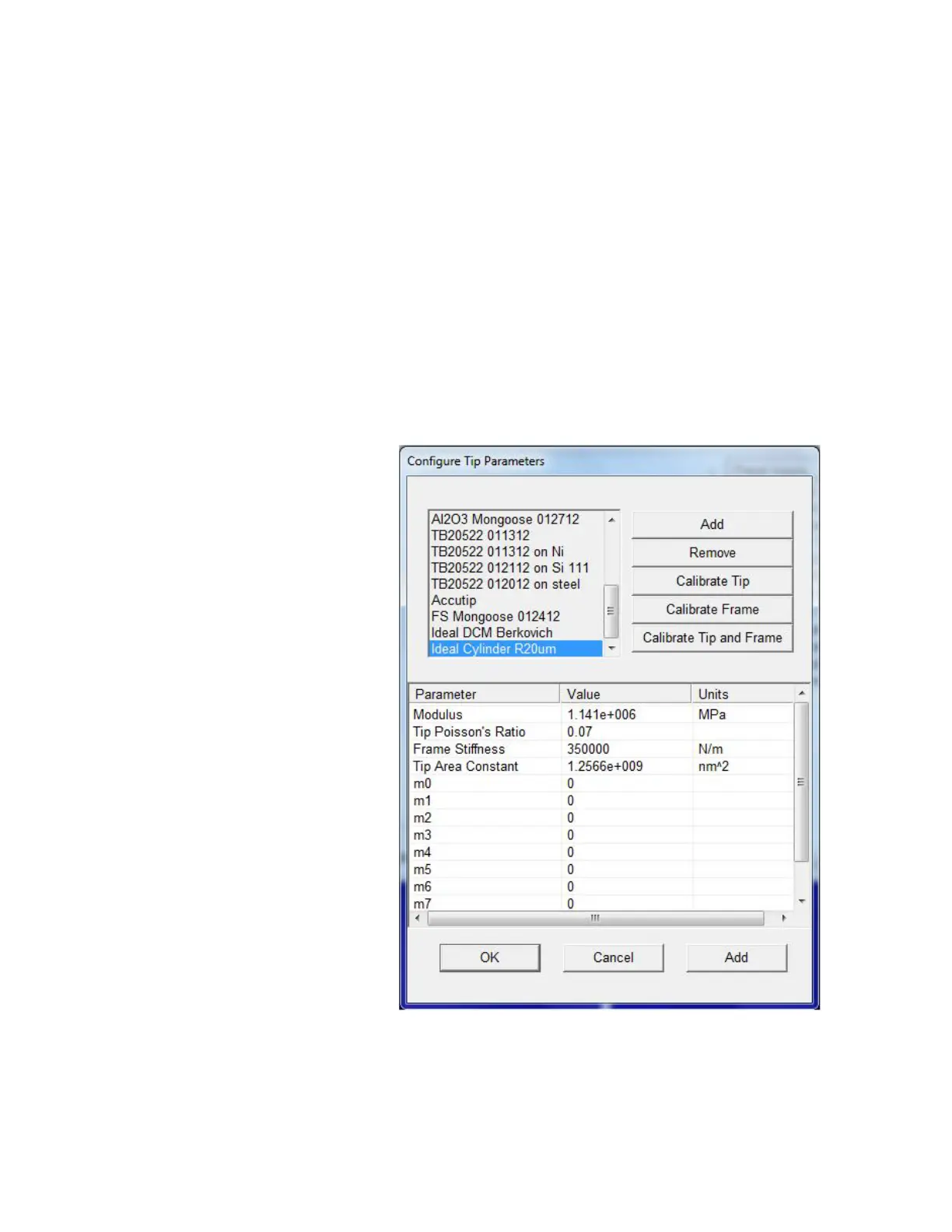

Figure 4-35Configure Tip Parameters dialog box
