Agilent Technologies Nano Indenter G200 User Manual

Commonly Used Procedures 6
Agilent Nano Indenter G200 User’s Guide 6-56

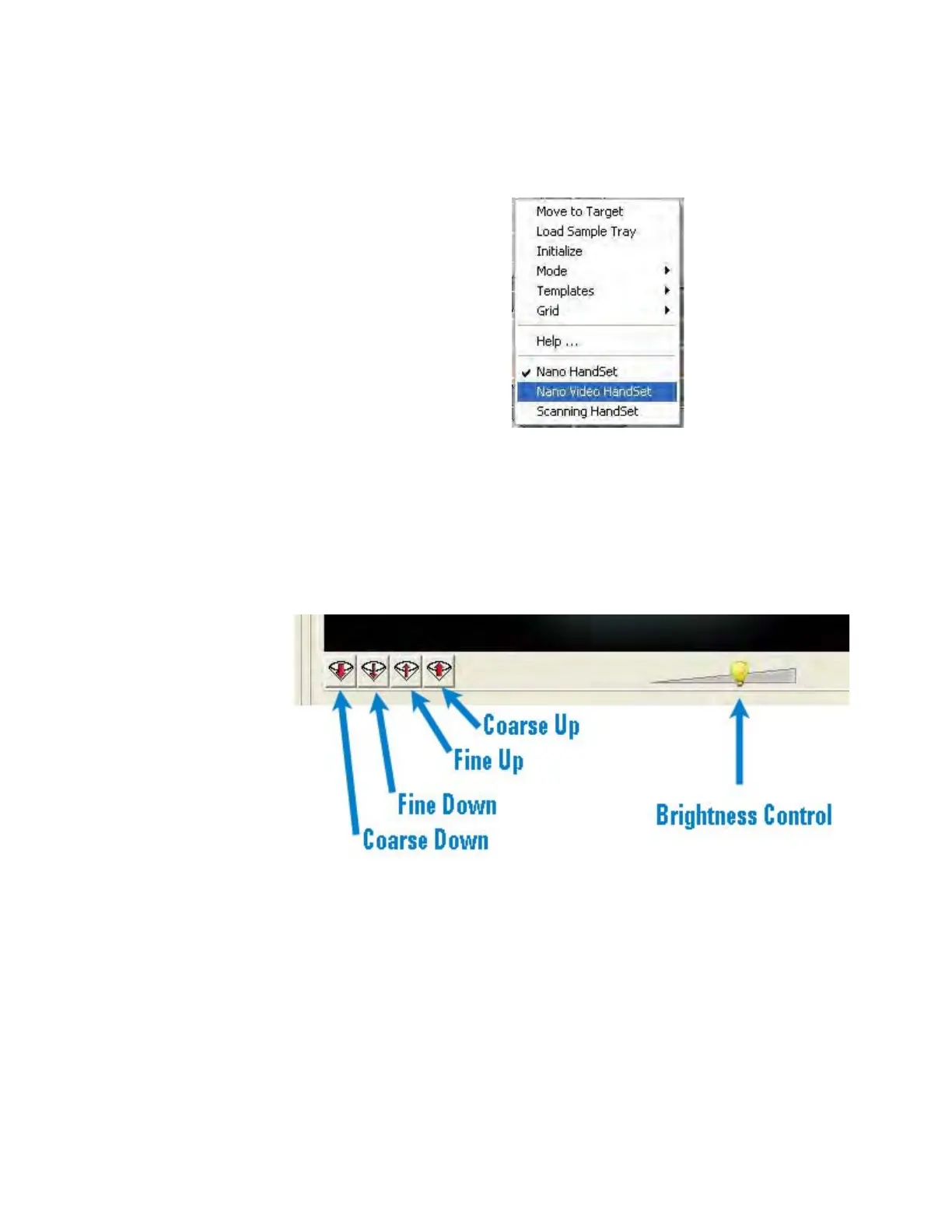

17 Right-click anywhere on the schematic map and select Nano Video
HandSet from the resulting pop-up menu, as shown in
Figure 6-68.
Figure 6-78Select Nano Video Handset from right-click menu
18 As shown in Figure 6-79, use the microscope brightness control and
coarse/fine focus controls to lighten the image and bring it into
focus.
Figure 6-79Microscope focus and brightness controls
19 Find a location on the sample that is free of contaminants and dust.
To move the viewing area, place the cursor over the red crosshairs in
the center of the video image, click, and slowly drag the cursor in the
direction of the area you want to view.
20 Click OK to initiate testing.
