Status Bar
The status bar lists system information. The status bar runs along the
bottom of the NanoSuite screen and is divided into three sections: left,
middle and right.

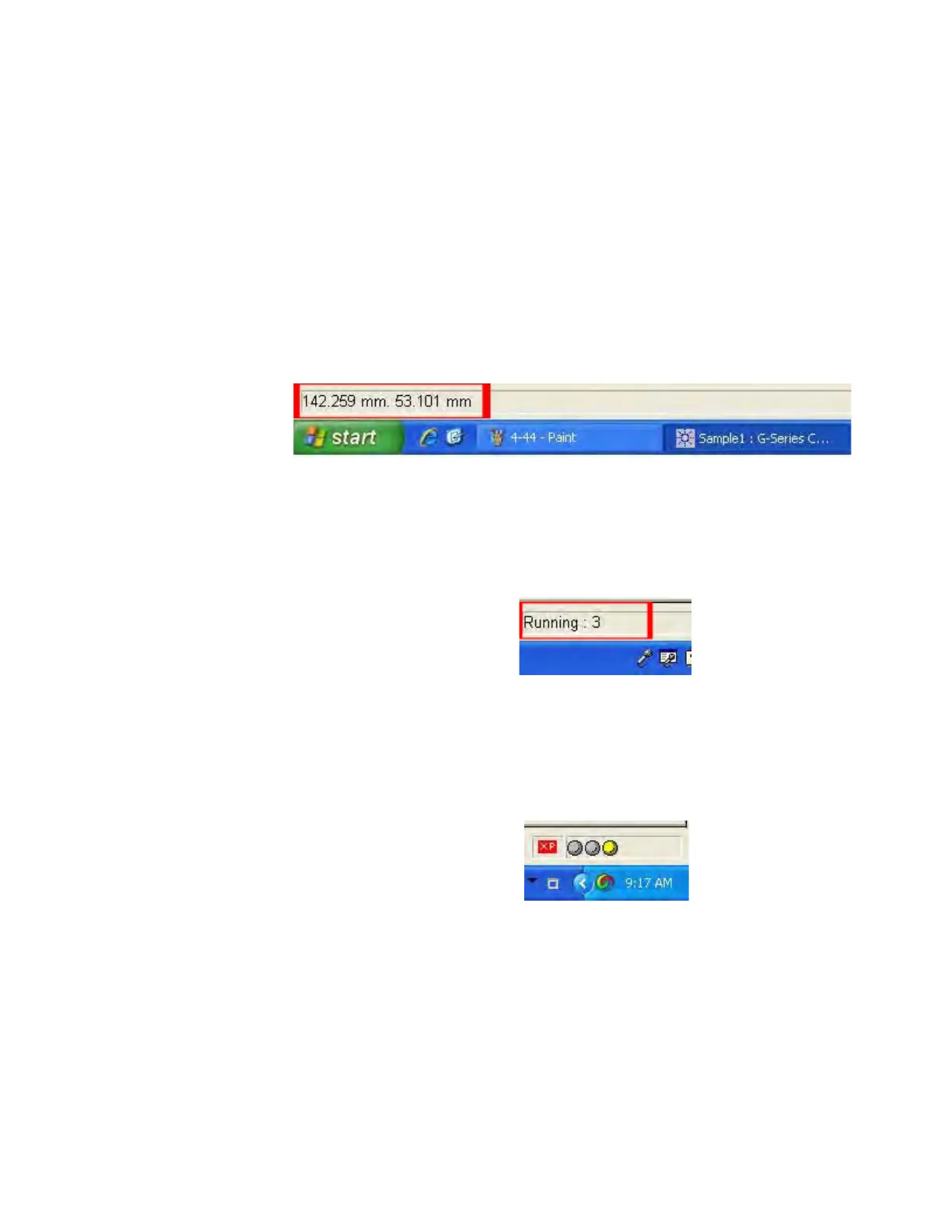

As shown in Figure 4-45, the left section displays messages, such as the
X/Y position (outlined in red) of the cursor in the Nano Video Handset
Area.
Figure 4-45Message display on left side of Status Bar
The section in the middle of the status bar indicates which test is
currently running as shown in
Figure 4-46.
Figure 4-46Currently running test display in the middle of Status Bar
The right section, shown in Figure 4-47, contains four icons that
indicate the status of hardware items.
Figure 4-47Hardware status display on right side of Status Bar
The first one indicates which head is active (the XP or the DCM).
The second and third icons indicate the status of X-axis motor and
Y-axis motor, respectively. When the motor is moving, the icon is white.
When the stage is moving or settling, the icon is green. When the motor
is idle, the icon is grey.
The fourth icon indicates the status of the indentation head. When the
head is parked, the icon is green. Otherwise, the icon is yellow.
