Agilent Technologies Nano Indenter G200 User Manual

Instrument Reference 3
Agilent Nano Indenter G200 User’s Guide 3-2
Components
Allen Wrench Set

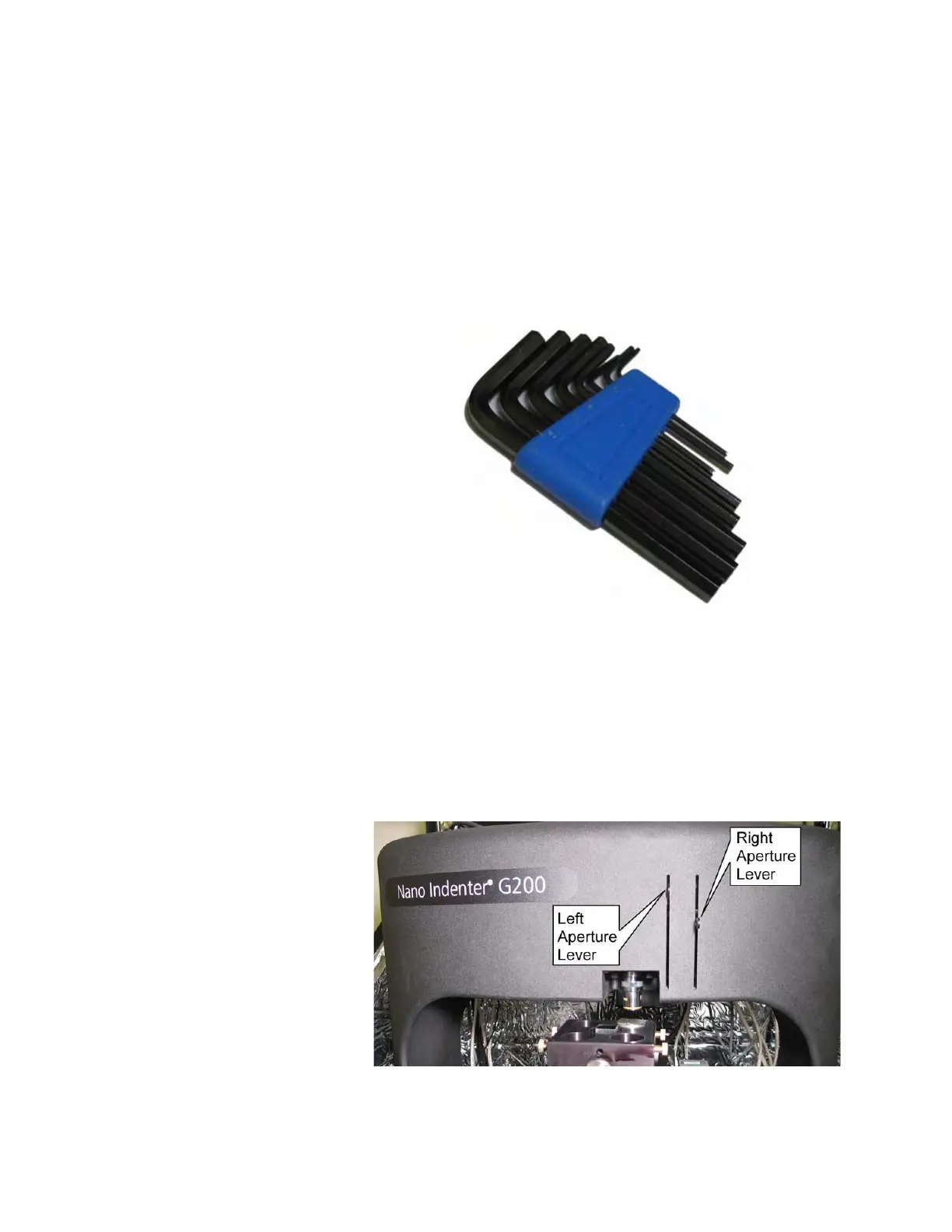

The Allen wrench set (Figure 3- 1) provided with the instrument is
required for the completion of a number of common procedures.
Figure3- 1Allen wrench set included with G200
Aperture Levers
The aperture levers (Figure 3- 2) are used to adjust the view of the
sample surface. The left aperture lever adjusts the iris diaphragm, which
affects the field of view and contrast. Adjustments in contrast will be
more evident with higher-power objectives. The right aperture lever
adjusts the amount of light picked up by the camera.
Figure3- 2Aperture levers on G200

Agilent Technologies Nano Indenter G200 Specifications

General

Brand	Agilent Technologies
Model	Nano Indenter G200
Category	Laboratory Equipment
Language	English
