Agilent Nano Indenter G200 User’s Guide 4-21
Changing the Appearance of Displayed Meters
You can change the font size, foreground color, background color, and
3-D appearance of the meters. Click the Update Example button to see
how your changes affect the appearance of the screen. You can also
toggle between displaying the channel name (which is the display name
of a parameter) or displaying the sensor name (which is the internal
name of a parameter).
Statistics…
This command is available on the Review Page only and enables you to
select which statistics will be calculated over a series of testing of a
sample via the Statistics Selection dialog box shown in
Figure 4-22.

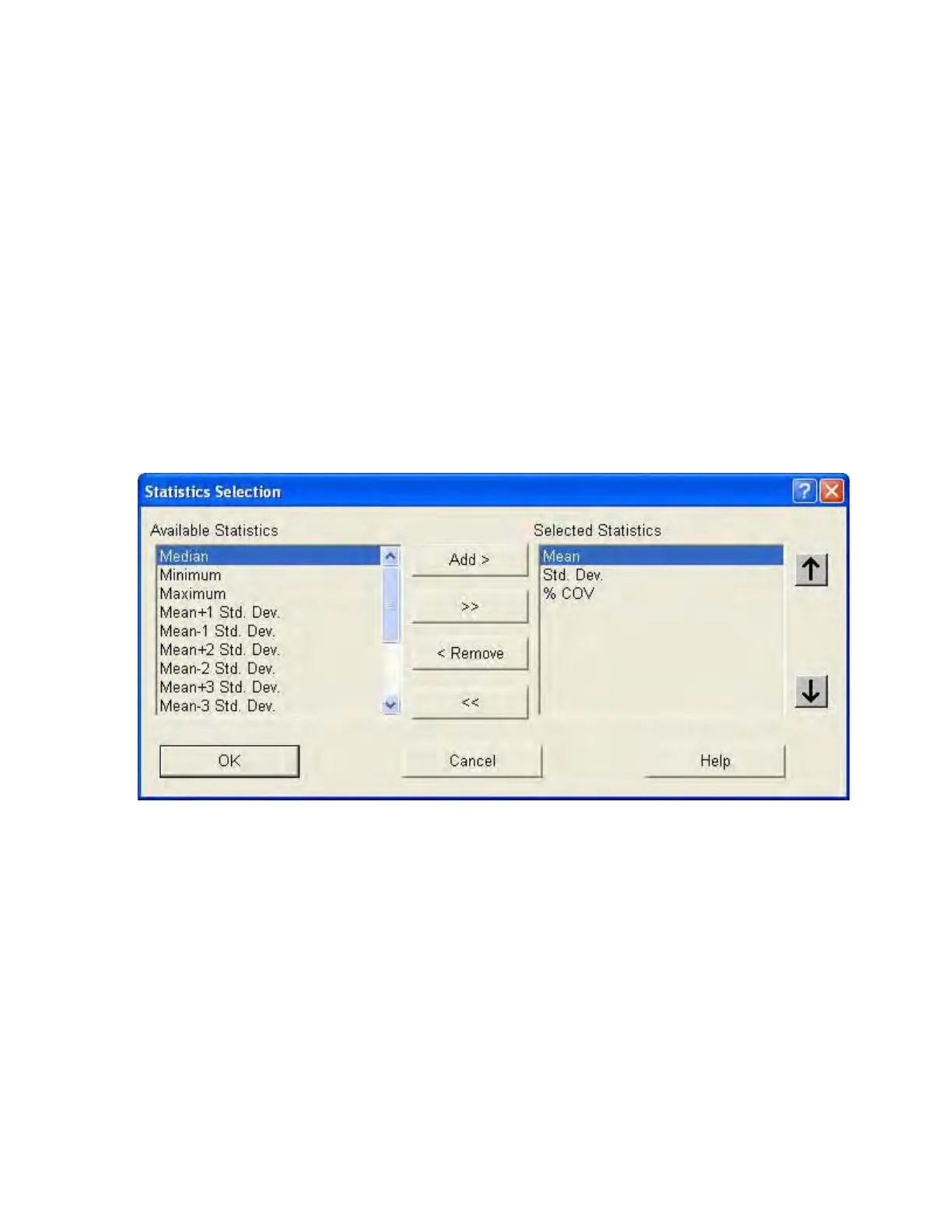

Figure 4-22Statistics Selection dialog box
Workspace…
This menu item is appropriate for only those instruments that have the
DCM option. If the DCM option is installed, use this command to
switch between the XP head and the DCM head via the Frame
Workspace Configuration dialog box shown in
Figure 4-23 on
page 4-22.
To complete the workspace change, you will have to close and restart
NanoSuite. A series of prompts will guide you through the process. For
more information about switching between heads, see the “Quick Start
Guide” of Appendix B.
