Agilent Technologies Nano Indenter G200 User Manual

Dynamic Contact Module II B
Agilent Nano Indenter G200 User’s Guide B-2
Quick Start Guide
Switching to the DCM II Head
To use the DCM II option, you must switch to the DCM II head in
NanoSuite.
1 Park the head by choosing System > Displacement Control Panel
as shown in
Figure B-1.

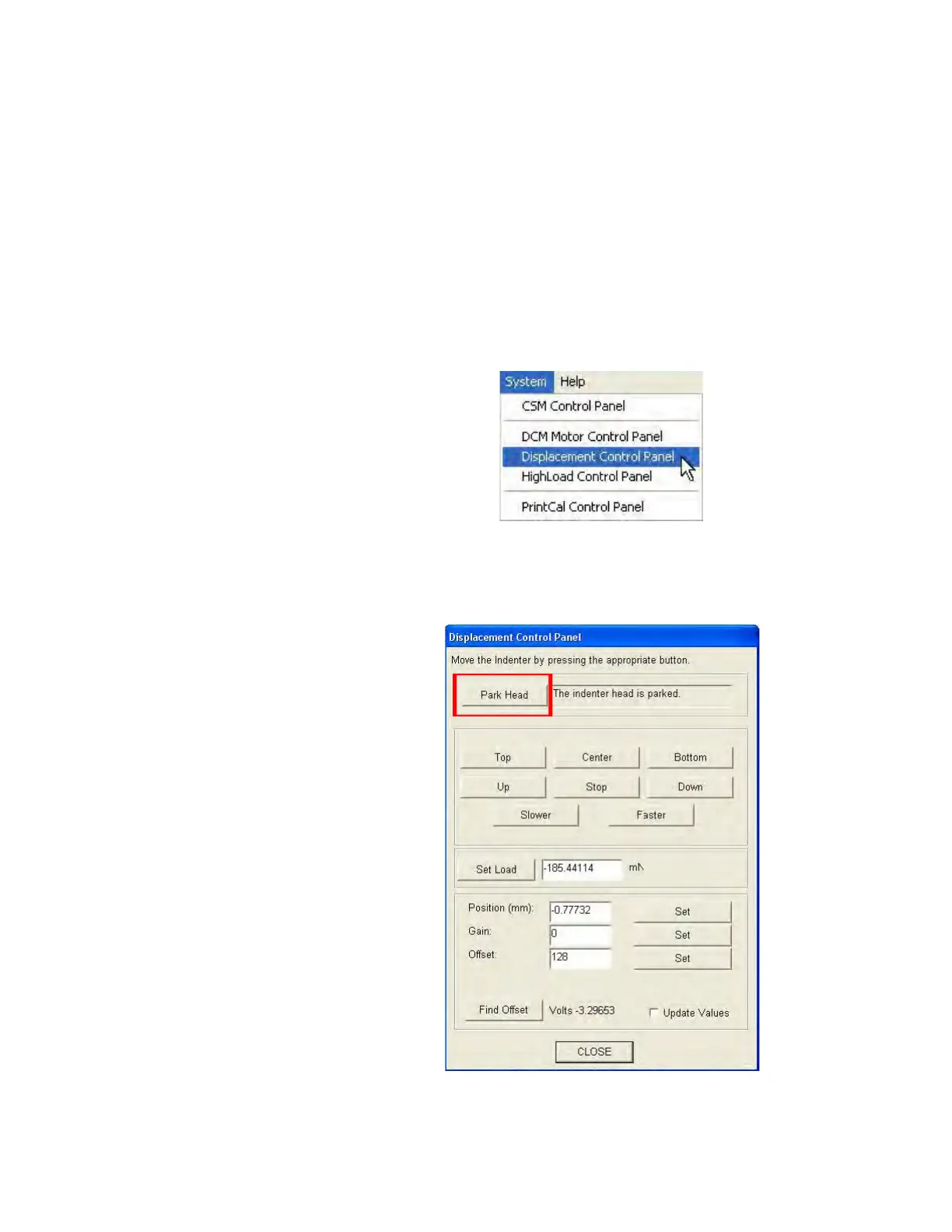

Figure B-1Select Displacement Control Panel from the System menu
2 In the Displacement Control Panel dialog box, click Park Head,
outlined in red in
Figure B-2.
Figure B-2Park Head button in Displacement Control Panel dialog box

Agilent Technologies Nano Indenter G200 Specifications

General

Brand	Agilent Technologies
Model	Nano Indenter G200
Category	Laboratory Equipment
Language	English
