NanoSuite Explorer D
Agilent Nano Indenter G200 User’s Guide D-11

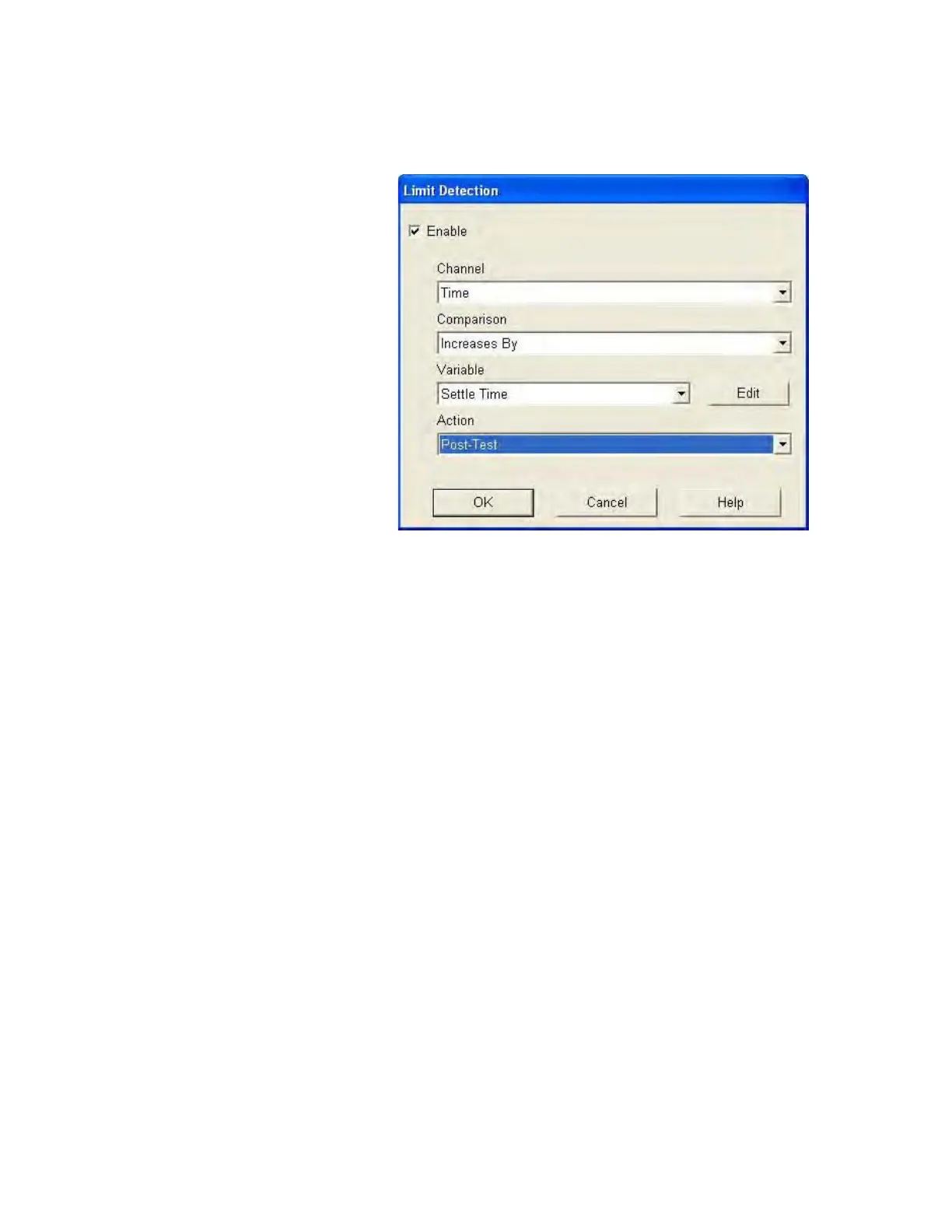

Figure D-11Limit Detection dialog box
Set the parameters in the Limit Detection dialog box:
1 Channel
2 Comparison
a greater than
b less than
c increases by
d decreases by
3 Variable: the desired limit
4 Action
To insert additional task tabs:
1 Choose Insert > Task....
In the Insert Tasks dialog box:
2 Select the desired task.
3 Click OK.
The new task tab will appear to the right of the Settings Pane.
