AIXTRON - Dokumentation CONFIDENTIAL 11
1
crius_II_en_00, Edition 06/2010
System Manual Use, data
CRIUS II Dimensions and weight
1.5 Dimensions and weight
1.5.1 Dimensions

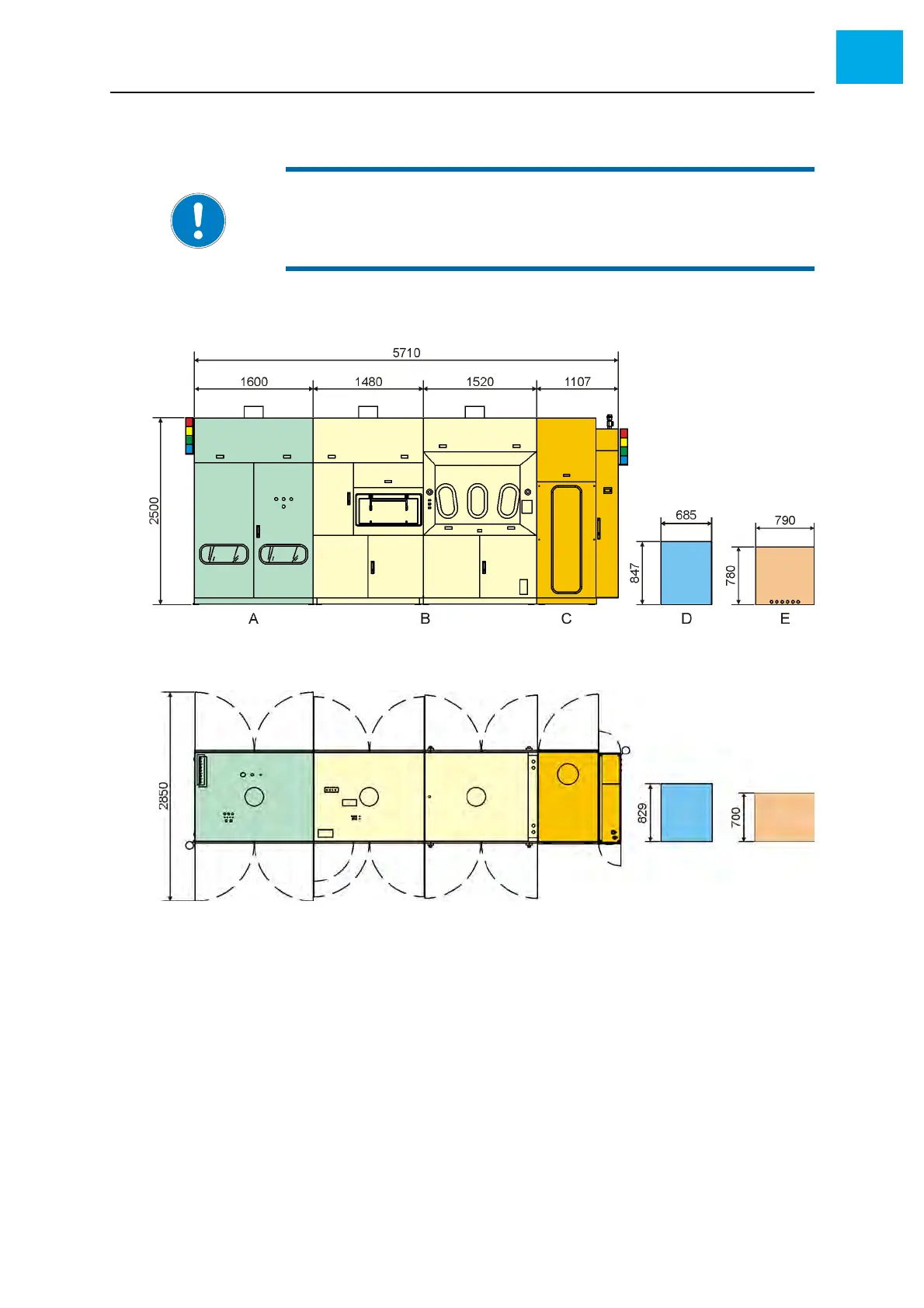

Fig. 1-3 Dimensions of the CRIUS II [mm]; Side view and top view
A Gas mixing cabinet
B Reactor cabinet
C Heater power supply unit
D Heat exchanger
E Transformer
NOTE:
The technical data stated here may differ from the information in the
installation plan. If this is the case, the data contained in the installation
plan are binding.
