AIXTRON CRIUS II - Internal Transport by Means of a Crane

AIXTRON - Dokumentation CONFIDENTIAL 103
4
crius_II_en_00, Edition 06/2010
System Manual Installation
CRIUS II Unpacking and internal transport
4.3.3 Internal transport by means of a crane
Because of the non-symmetrical centre of gravity, the cabinets should be lifted
and lowered by means of an adjustable H-beam.
AIXTRON recommend using an adjustable H-beam in order to prevent dam-
age.

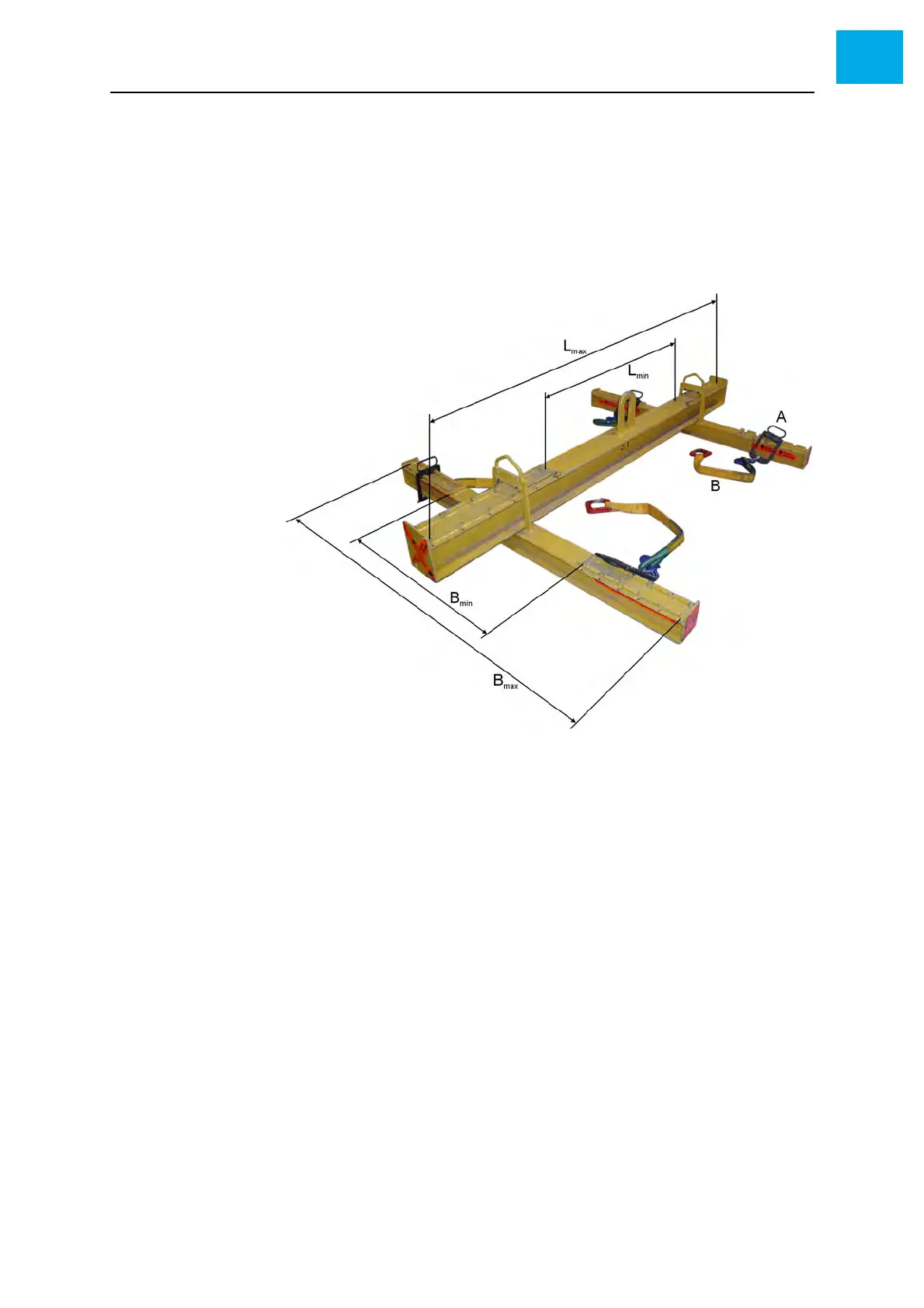

Fig. 4-2 H-beam
A Adjustable load hook
B Transport belt
L
max
: 3000 mm
L
min
: 1500 mm
B
max
: 2000 mm
B
min
: 1000 mm
Dead weight: 350 kg
