3.1 Process technology
CVD (Chemical Vapour Deposition) is a common method for deposition of thin
films.
3.1.1 CVD (Chemical Vapor Deposition)
In a CVD process, volatile compounds are transported into the reactor cham-
ber via the gas phase. Here they are decomposed on a hot substrate by ther-
mal energy.
The following reaction steps take place (see Fig. 3-1,  56):
1 Transport of the reagents in the gas phase to the substrate, e.g. by
means of a carrier gas
2 Diffusion of the molecules through the phase interface gas/boundary
layer
3 Adsorption on the substrate surface
4 Migration of the molecules to crystallization zones
5 Chemical decomposition
6 Desorption of the by-products and diffusion and convection out from the
boundary layer
7 Transport of the by-products out from the reactor

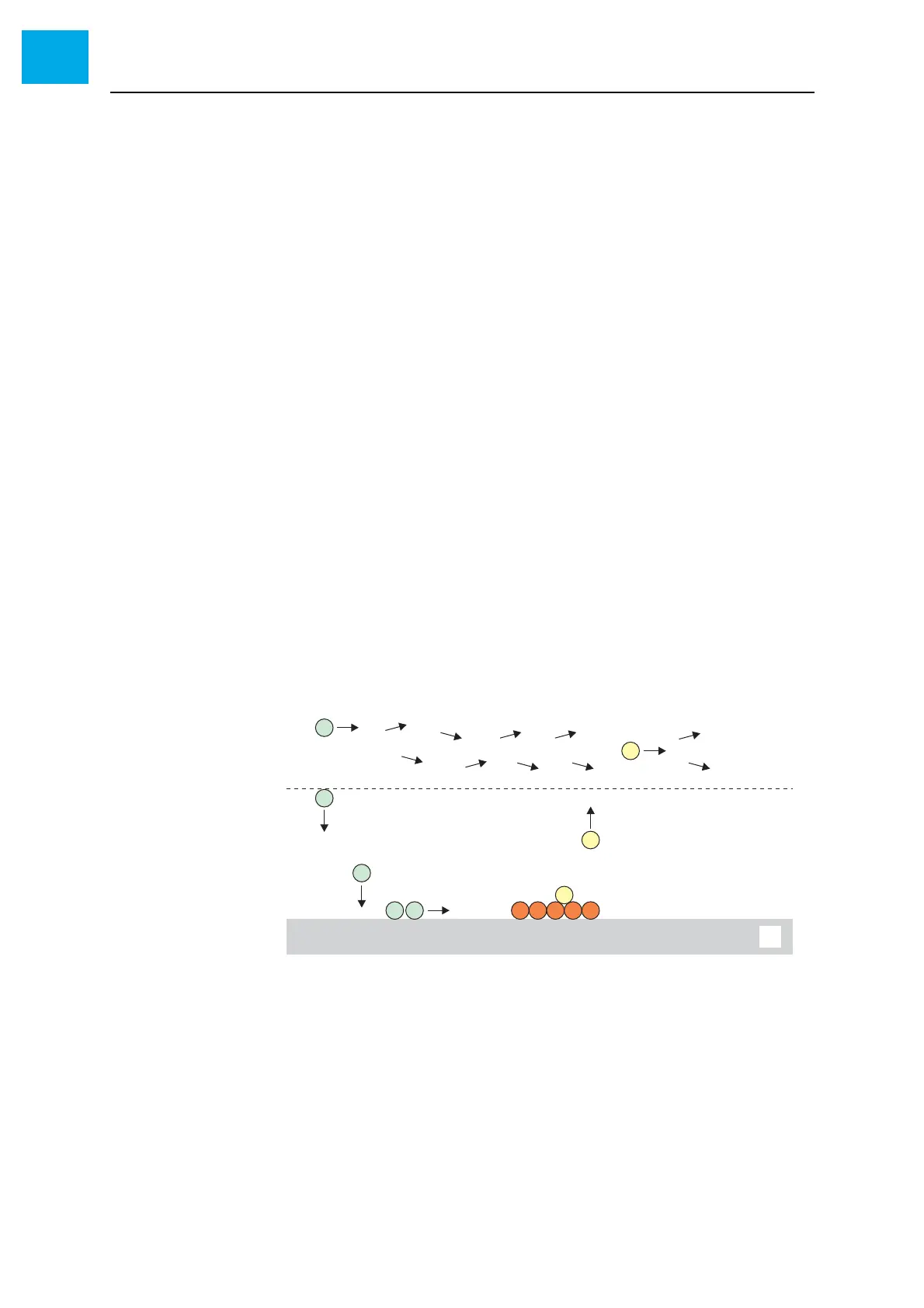

Fig. 3-1 CVD reaction steps
A Gas phase
B Boundary layer
C Substrate
A
B
C
1
2
3
4
5
6
7
