Load lock CRIUS II
3
3.4 Load lock
3.4.1 Load lock chamber
Substrates are transported into the glove box via the load lock. The load lock
chamber comprises two doors: The outer door is used to load and unload sub-
strates. See Fig. 3-5,  60. The inner door is used to transfer substrates
between load lock chamber and glove box. See Fig. 3-5,  60.

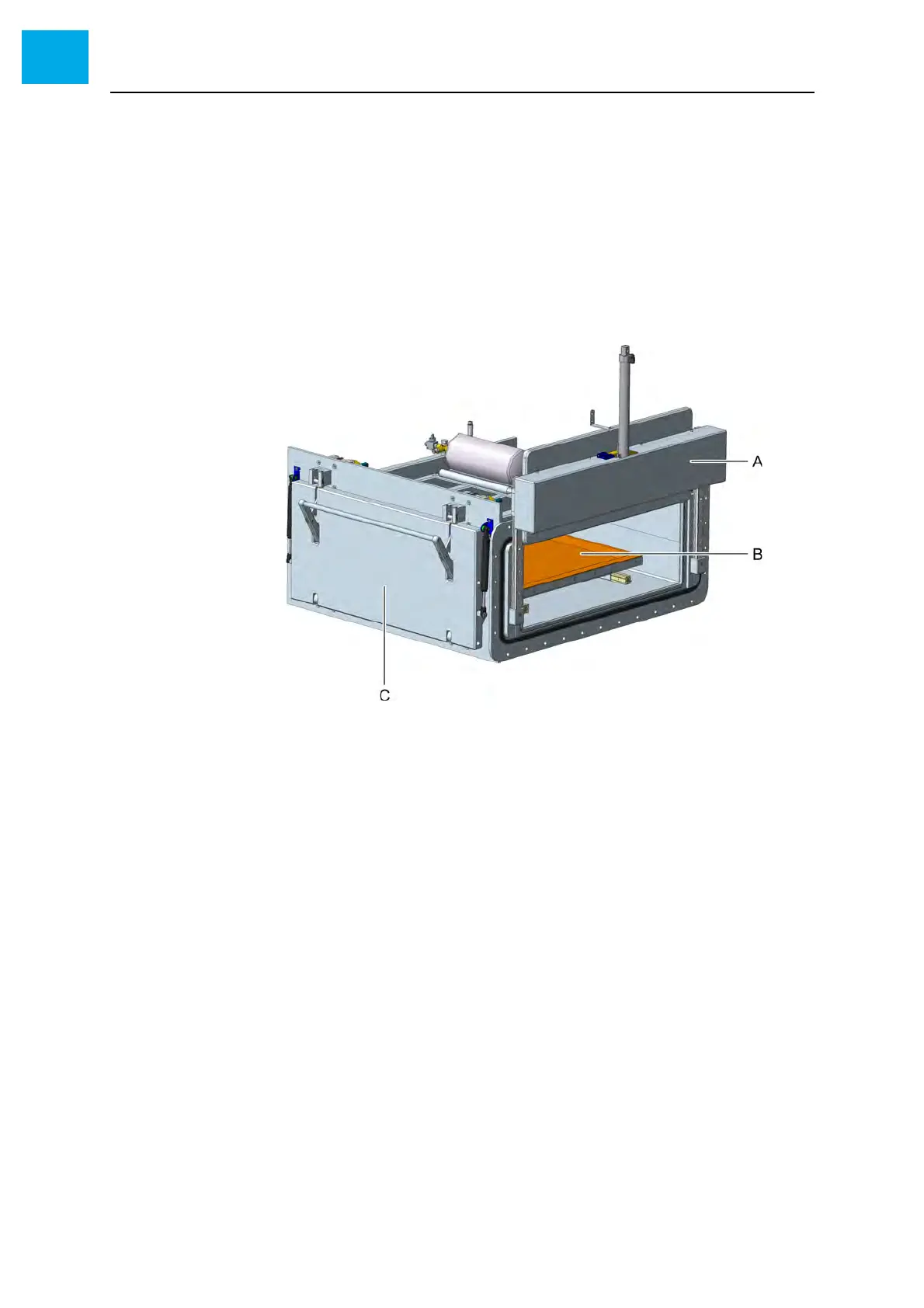

Fig. 3-5 Load lock
A Inner lock chamber door
BDrawer
C Outer lock chamber door
