3.6.7 Gas purifier
Gases purifiers are optionally available in order to obtain ultra-pure gases.

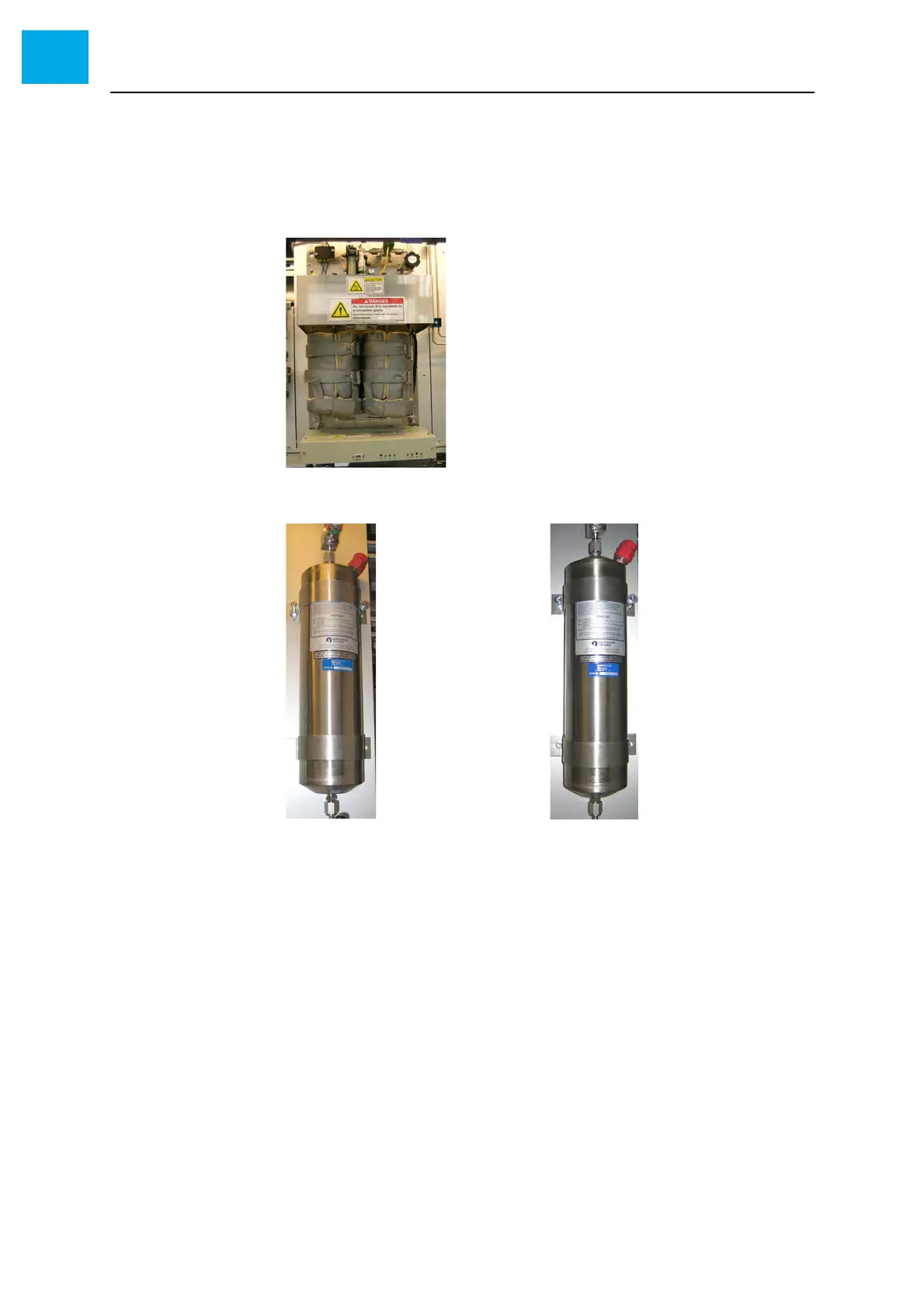

Fig. 3-31,  82 and Fig. 3-32,  82 show examples.
Fig. 3-31 H
2
purifier
Fig. 3-32 N2 - N2 purifier (left) and NH
3
purifier (right)
