System Manual Installation
CRIUS II Unpacking and internal transport
4.3.4 Internal transport by means of a lift truck
If a transport by means of a crane is not possible, the cabinets may be trans-
ported by means of a lift truck.
Transport condi-
tions
Transport routes
If no additional safety devices are mounted, the cabinets may only be trans-
ported on smooth and level surfaces.
Inclines
A separate safety device for protection against tilting is required if the cabinet
is transported on inclines.
Load capacity
The surfaces must have a load capacity of at least 3200 kg.
Dimensions
Doors and elevators must have the following clearance dimensions:

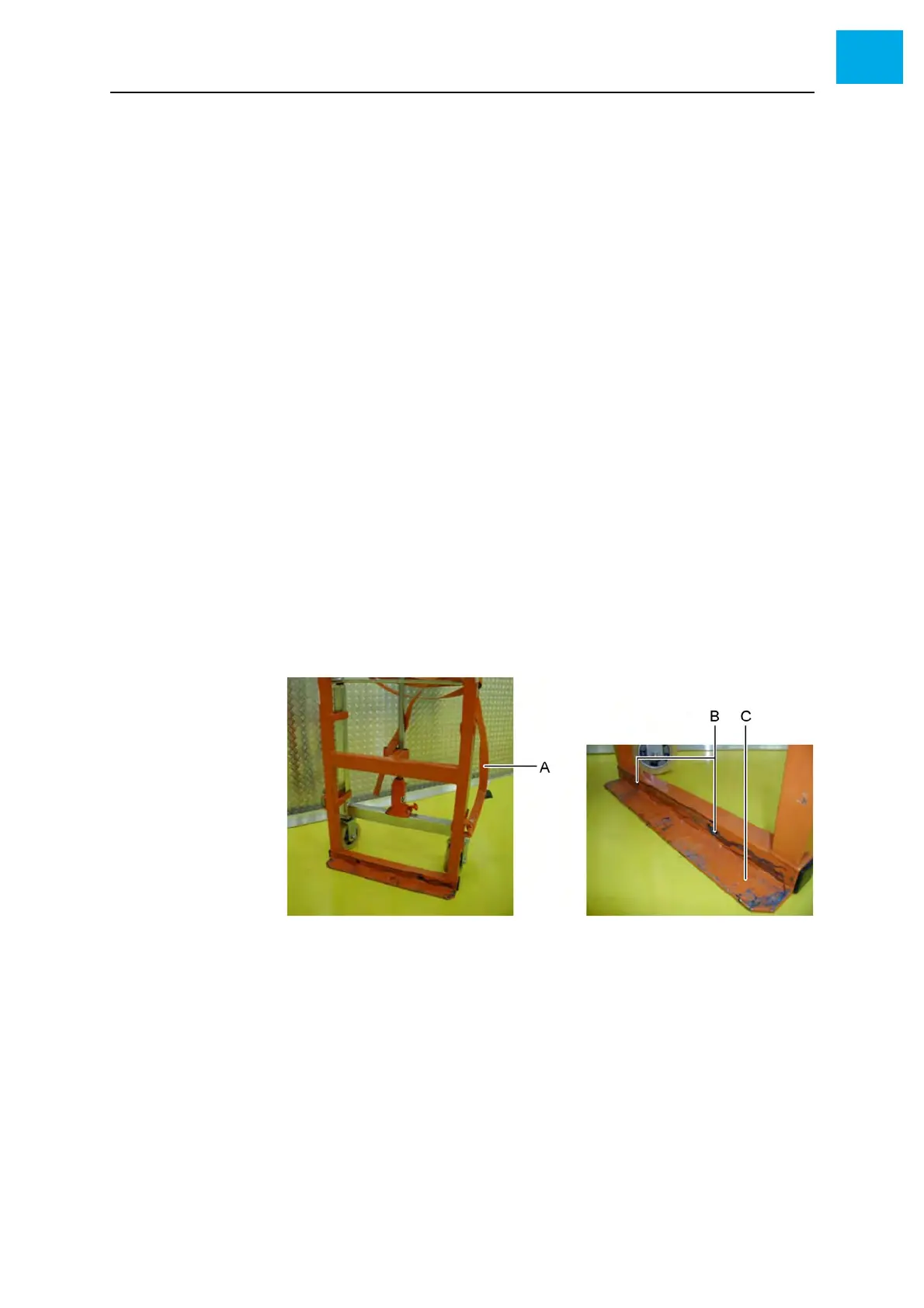

Fig. 4-4, 105 shows a lift truck.
Fig. 4-4 Lift truck
A Load strap
B Mounting holes
C Load plate
Transport Proceed as follows to transport the cabinet by means of a lift truck:
1 Lift the cabinet by means of the crane and the H-beam. See
Chapter 4.3.3 Internal transport by means of a crane, 103.
2 Remove the wooden pallet
Height: 2.70 m
Width: 1.40 m
Depth: 3.30 m
