The configuration options available in the setup area of the screen are
described below. The status information is described in a separate section.
TerminologyTerminology
Allows you to select either SonetSonet or SDHSDH notation for the naming of alarms,
errors, and pointers on the WAN status and result pages.
FollowsFollows
It is possible to let the Port 2 copy the setup from Port 1 by touching the
FollowFollow button. When this button is displayed in green, Port 2 continues to
follow Port 1 change. This button appears when the Port 1 settings can be copy
to Port 2.
The buttons varies depending on "Terminology" selection. Touching the
buttons launches the dialog box to set SOHSOH, TOHTOH or POHPOH.
SOH (Section OverHead) for SDH
TOH (Transport OverHead) for Sonet
POH (Path Overhead)
For the operation of dialog boxes, refer to the following sections.
SOH Editor in "SDH Setup and Status"
POH Editor in "SDH Setup and Status"
TOH Editor in "SONET Setup and Status"
POH Editor in "SONET Setup and Status"
66..11..22..22 StreamsStreams

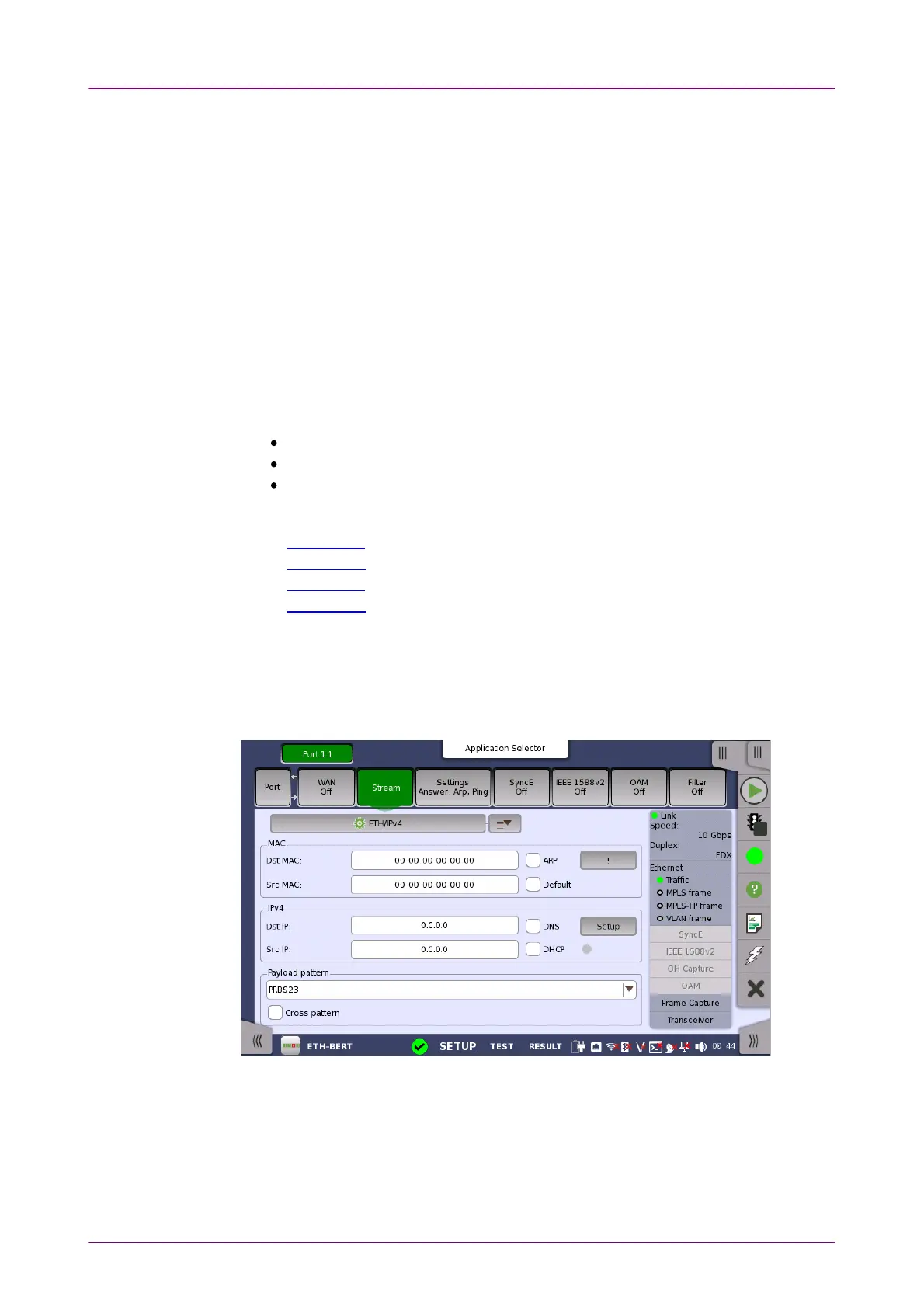

Touching the StreamsStreams button in the navigation area will display a screen like
the one shown below.
This screen contains the setup of the Ethernet frame content transmitted by the
Network Master. The exact layout depends on the current selection of layers
(i.e. the various encapsulation and protocol headers composing the Ethernet
frame). Touching the button in the top left-hand part of the screen will display
the dialog box to set options related to the layers.
