Type
Select the extension header type from Hop-by-HopHop-by-Hop, Routing (Type 0)Routing (Type 0),
DestinationDestination.
Length
Set the byte length of the custom pattern.
The value setting to the actual header is the truncated value after the
decimal point of (Length + 2)/8.
Custom pattern
Touch the field to edit the pattern by using Pattern Editor.
66..11..22..77 OAMOAM

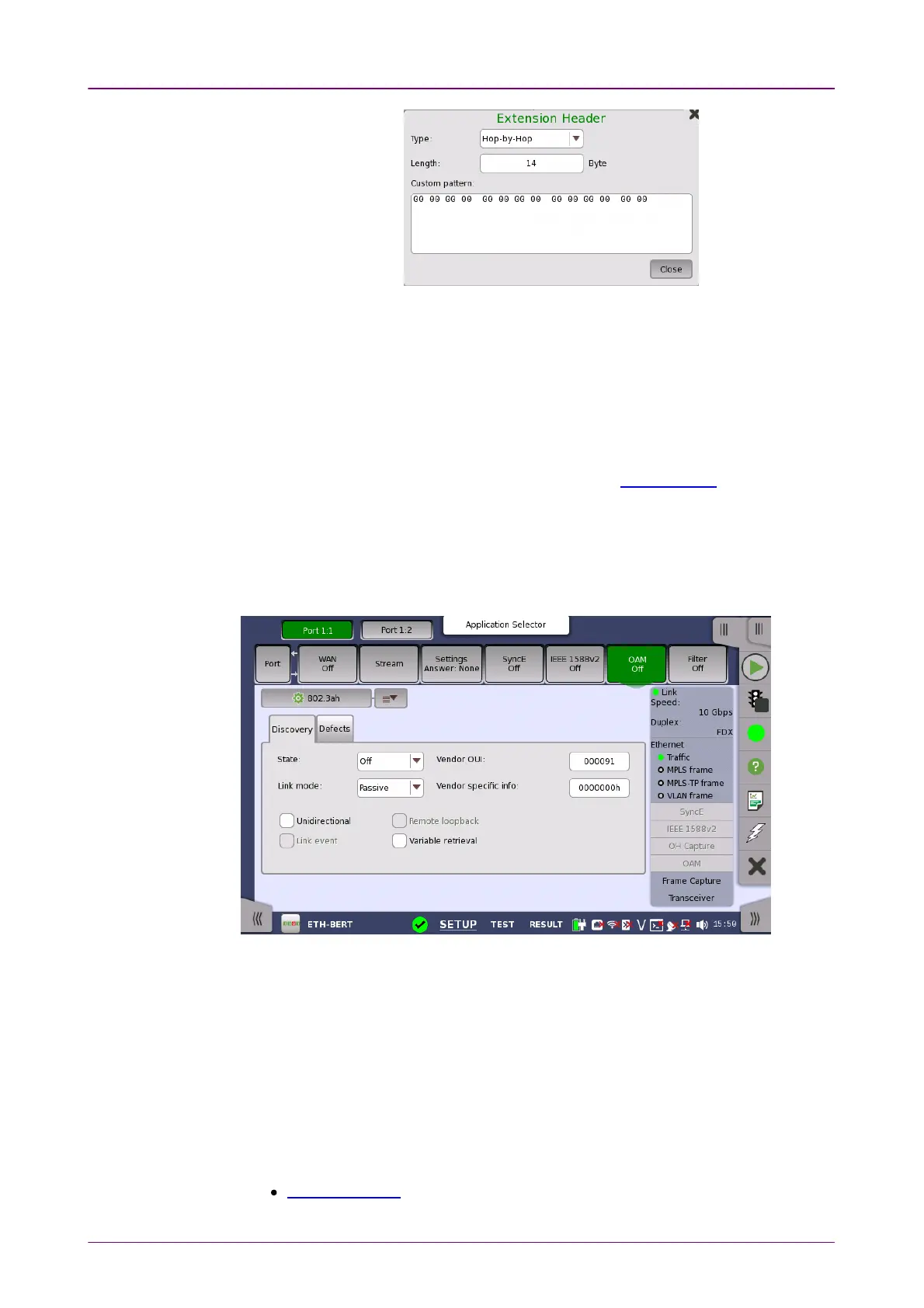

Touching the OAMOAM button in the navigation area will display the screen shown
below.
OAM (Operation, Administration and Management) is a group of management
functions that provides system or network fault indication, performance
monitoring, security management, diagnostic functions, configuration and user
provisioning.
This screen allows you to configure the OAM application (i.e. the OAM
functions). It can also be used to inspect the current status of the selected port.
ProtocolProtocol
Touch the button in the top left-hand part of the screen to select the protocol.
The setup parameters are grouped according to protocol.
802.3ah protocol - Applies to the connectivity of point-to-point connections
across one hop.
