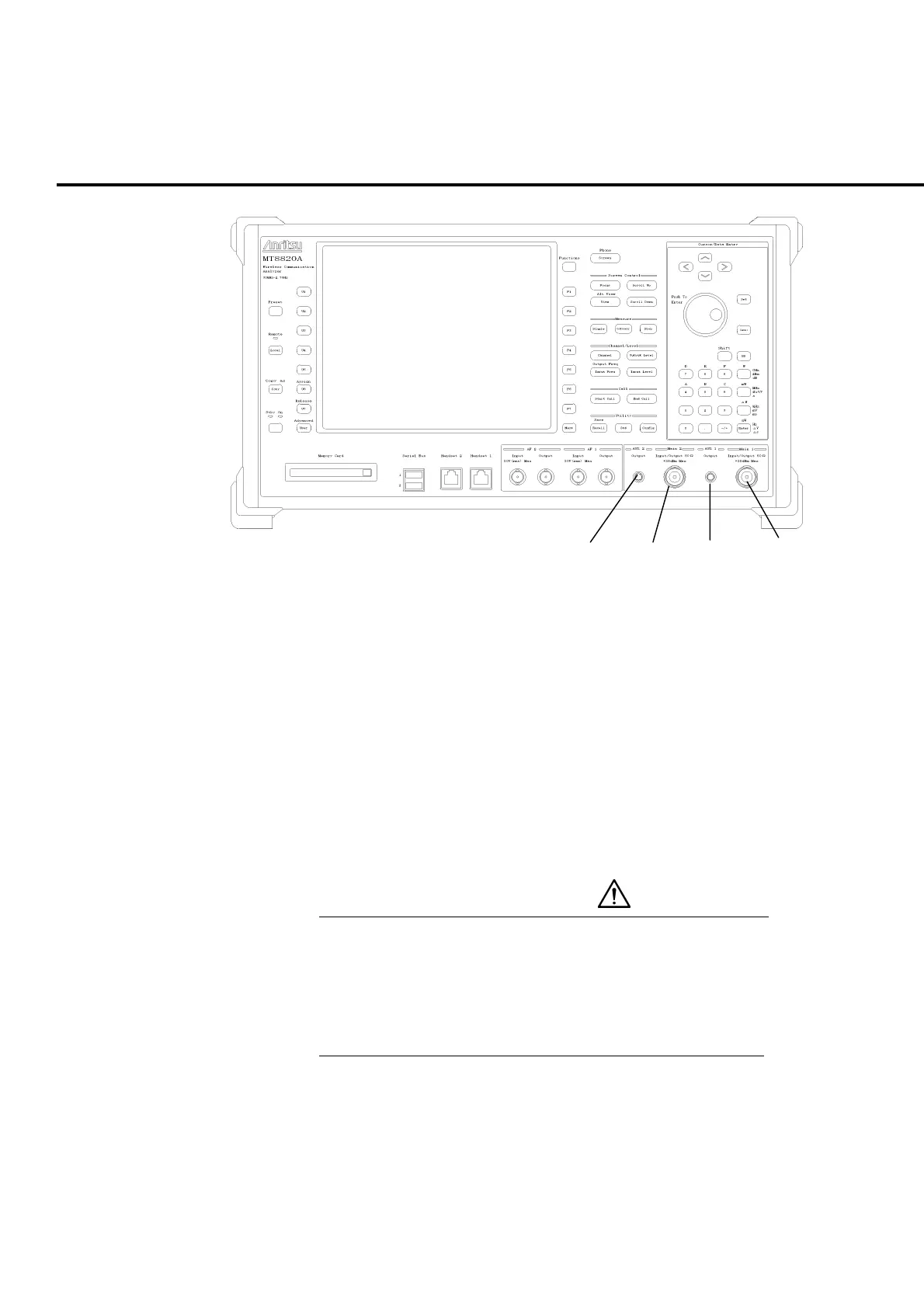

Fig. 2-1-2-5 Front panel (5) – RF connector
RF connectors
17. AUX2 Output AUX2 auxiliary output connector
Currently not available.
18. Main2 Input/Output Main2 input/output connector
Currently not available.
19. AUX1 Output AUX1 auxiliary output connector
SMA type auxiliary output connector used for RF measurement on Phone 1.
20. Main1 Input/Output Main1 input/output connector
N type main input/output connector used for RF measurement on Phone 1.
CAUTION
Do not feed power exceeding the maximum permissible
power specified on the label or in the specification to the RF
input connector. Do not feed signals to the RF output
connector. Such attempts may damage the internal
circuits thus causing a fire accident or failure.
