Section 2 Setup
2-32

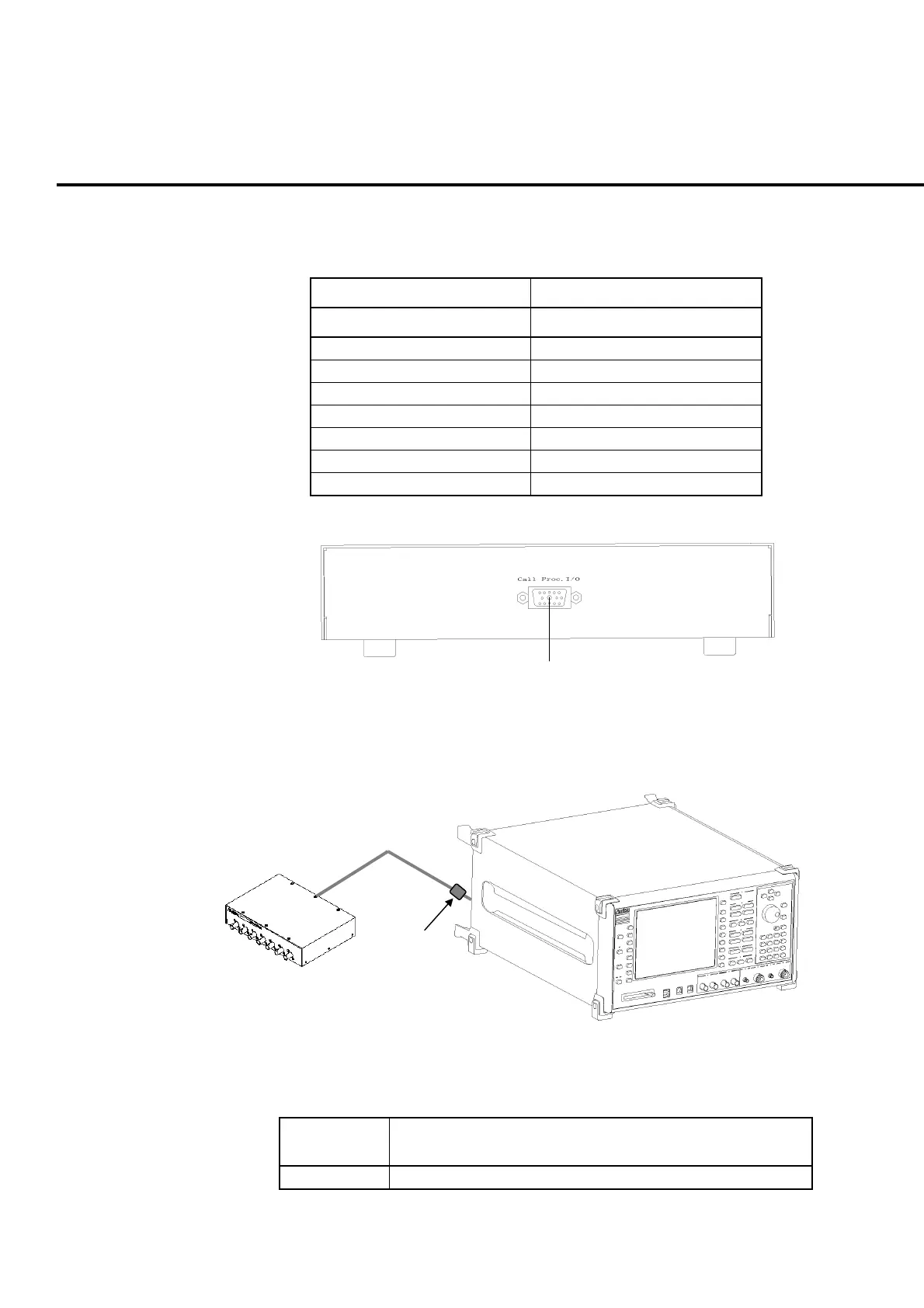

Table 2-3-10-4 Relationships between front panel connector and
MT8820A Call Proc I/O connector
When using CDMA2000 measurement software
MN8110A front panel Call Proc. I/O on MT8820A
Connector name Signal name
RSV1 RSV_OUT_1
RSV2 RSV_OUT_2
PP2S Output PP2S
Frame Output Frame
Slot Output Slot
SYNC Input SYNC IN
SYNC Output SYNC OUT
1
Fig. 2-3-10-3 Rear panel
1. Call Proc. I/O MT8820A interface connector
Core
Fig. 2-3-10-4 Connection between MT8820A and MN8110A
Table 2-3-10-5 MN8110A standards
Dimensions
213 mm (W), 44 mm (H), 150 mm (D)
(projecting items not included)
Mass 1 kg or less
